KOKANIA

Smart Manual Range Multimeter with NCV AC DC Ohm Hz

Smart Manual Range Multimeter with NCV AC DC Ohm Hz

Normaler Preis $57.28 USD
Normaler Preis $107.40 USD Verkaufspreis $57.28 USD
Sale Ausverkauft
Versand wird beim Checkout berechnet
Color - SZ20 Red
Vollständige Details anzeigen

SPECIFICATIONS

DIY Supplies: ELECTRICAL

AC Voltage: 0mV-750V

Display Type: Digital display

DC Voltage: 0mV-1000V

AC Current: 0uA-20A

Measuring Resistance Range: 0-250M Ohm

Certification: CE

DC Current: 0uA-20A

Measuring Capacitance Range: OnF-99.99mF

Operating Mode: Manual mode

Model Number: SZ20 Multimeter

Is Smart Device: No

Measuring Inductance Range: no

Dimensions: 180*90*50mm

Operating Temperature: 0 - 40 ℃

Choice: yes

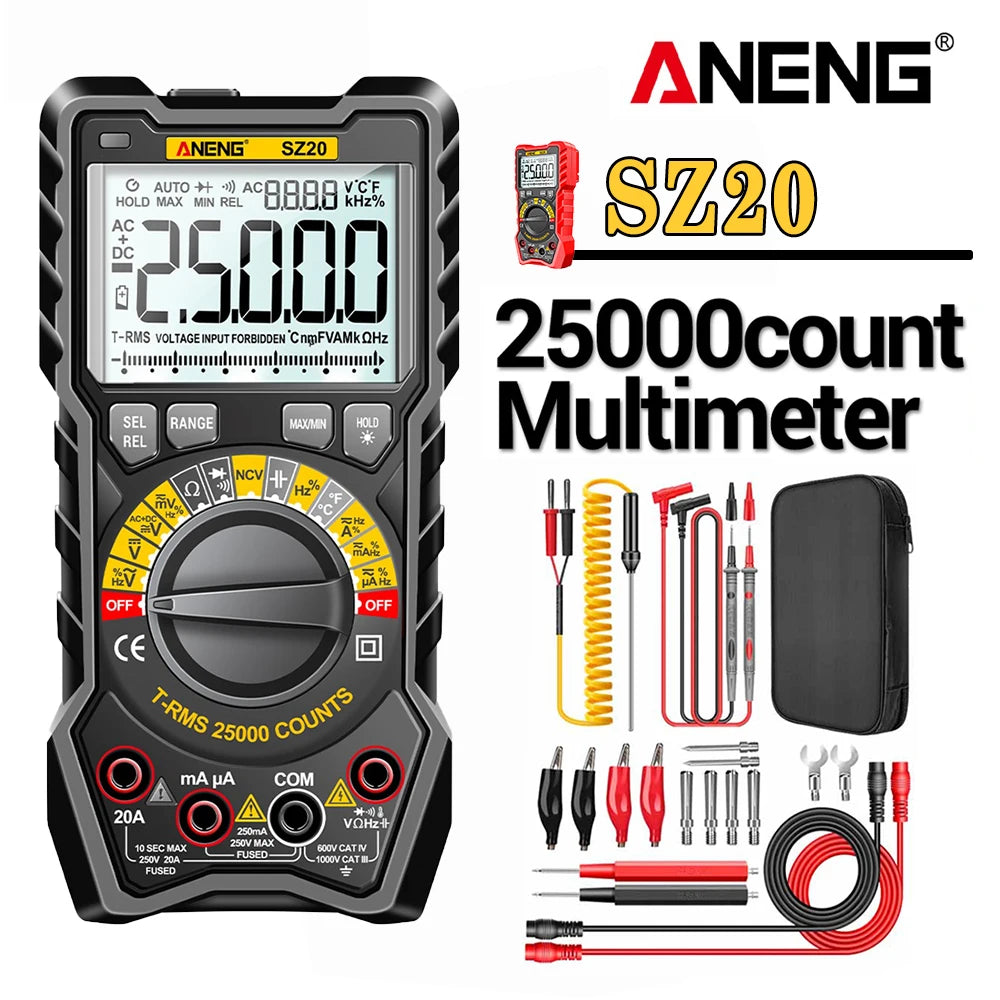

ANENG SZ20 Handheld Professional Digital Multimeter Tester True RMS Auto Range 25000 Counts DC AC 1000V


Description:

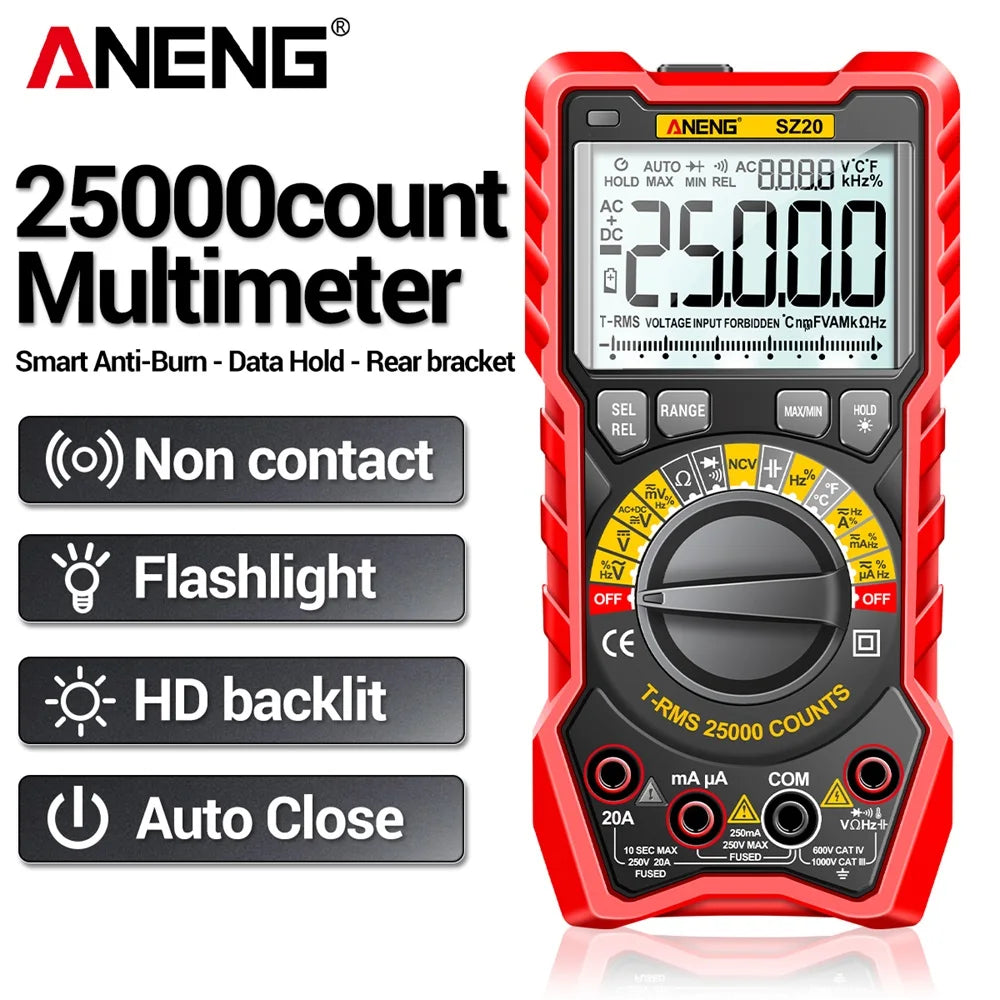

This product is a battery-poewred, true-rms, auto-ranging digital multimeter with a 25000 counts LCD display and a backlight.
1. Easy to use. This product is a battery-driven automatic range digital multimeter with true RMS.
2. Digital display. Instrument for LCD display, backlight display, clear reading.
3. Strip lighting. The strip lights on both sides of the screen will change synchronously with the intensity of the electric field.

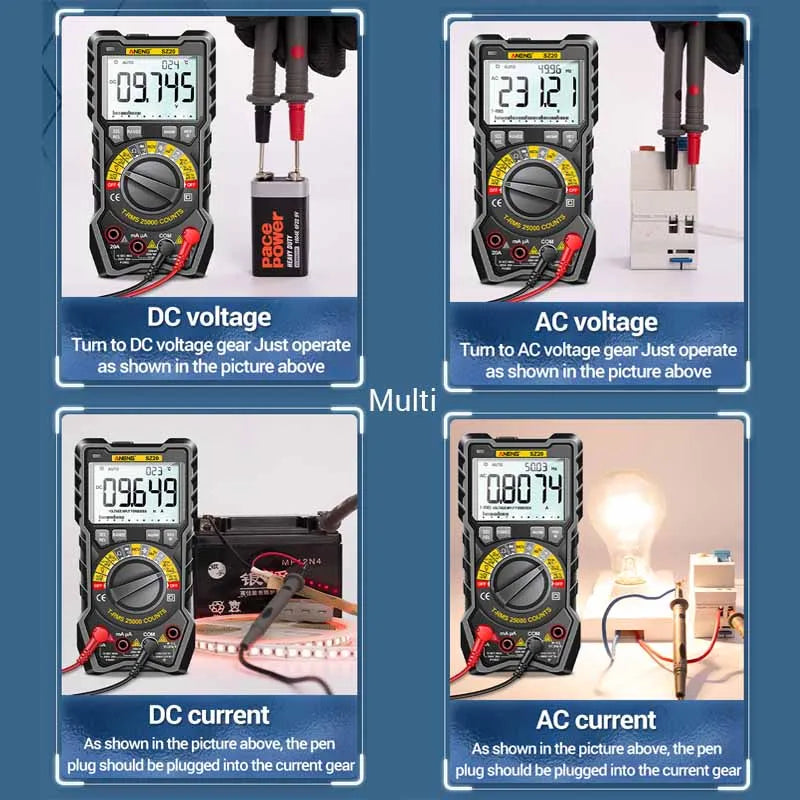

4. Multimeter. Voltage, current, resistance, on-off, diode, frequency, non-contact voltage detection can be used.
5. Automatic shutdown. The multimeter will shut down automatically after 15 minutes.


Specification:

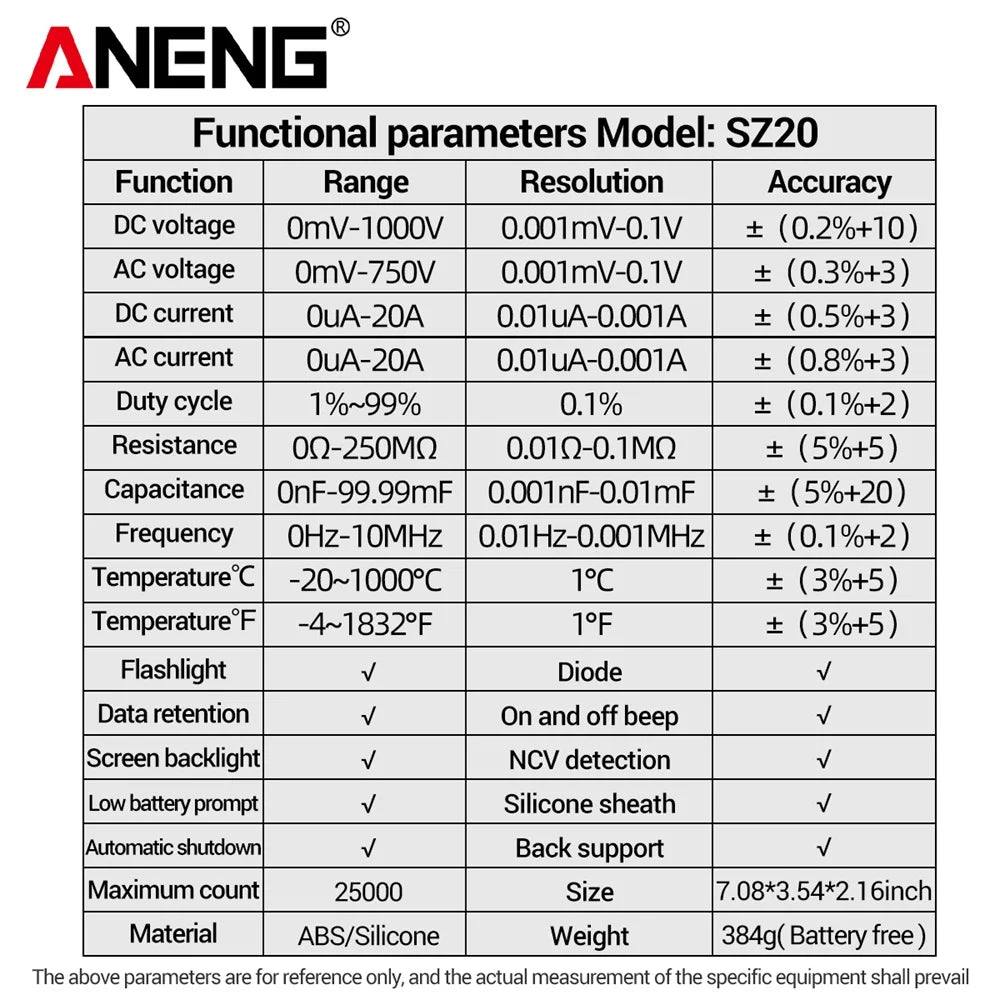

Functional parameters Model: SZ20

Function

Range

Resolution

Accuracy

DC voltage

OmV-1000V

0.001mV-0.1V

±(0.2%+10)

AC voltage

OmV-750V

0.001mV-0.1V

±(0.3%+3)

DC current

OuA-20A

0.01uA-0.001A

±(0.5%+3)

AC current

OuA-20A

0.01uA-0.001A

±(0.8%+3)

Duty cycle

1%~99%

0.1%

±(0.1%+2)

Resistance

0 Ω -250M Ω

0.01Ω-0.1MΩ

±(5%+5)

Capacitance

0nF-99.99mF

0.001nF-0.01mF

±(5%+20)

Frequency

0Hz-10MHz

0.01Hz-0.001MHz

±(0.1%+2)

Temperature℃

-20~1000°℃

1℃

±(3%+5)

Temperature°F

-4~1832°F

1°F

±(3%+5)

Flashlight

Diode

Data retention

On and off beep

Screen backlight

NCV detection

Low battery prompt

Silicone sheath

Automatic shutdown

Back support

Maximum count

25000

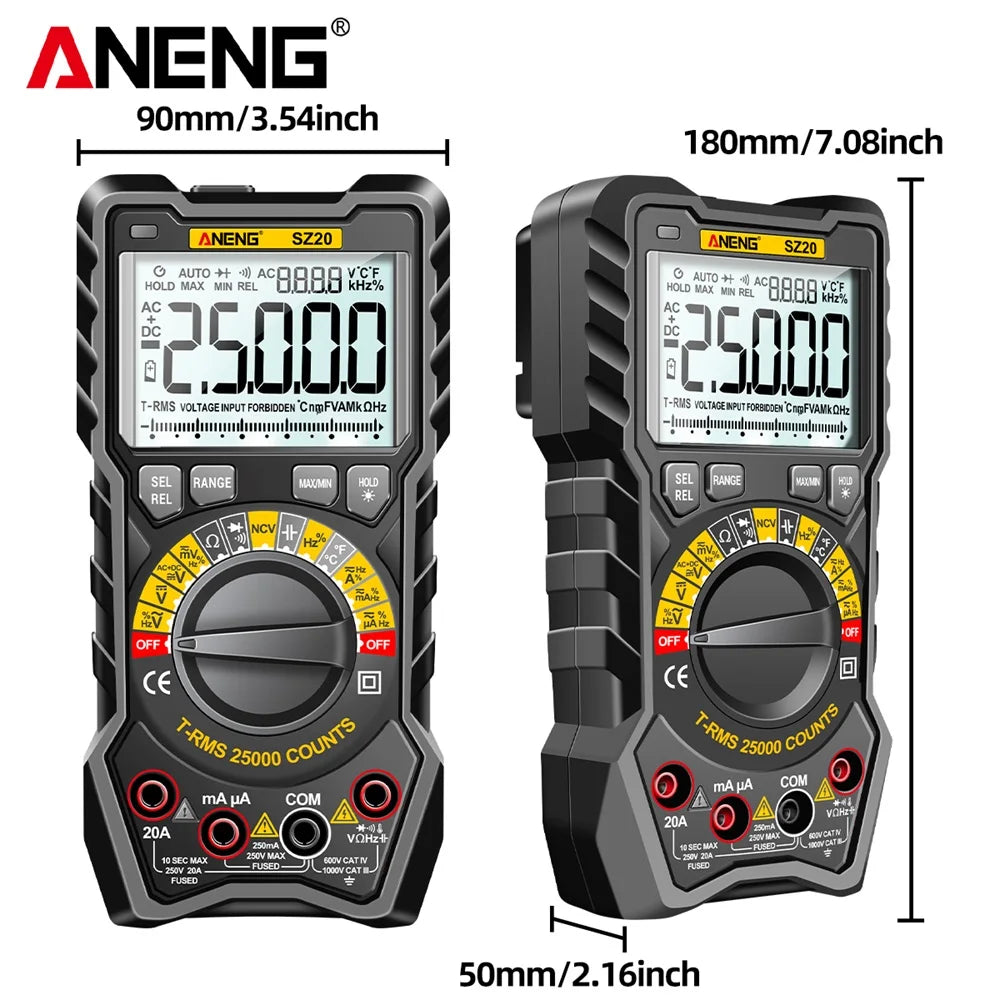

Size

7.08*3.54*2.16inch

Material

ABS/Silicone

Weight

384g( Battery free)

above parameters are for reference only, and the actual measurement of the specific equipment shall prevail

Please note: Batteries are not included in the shipment

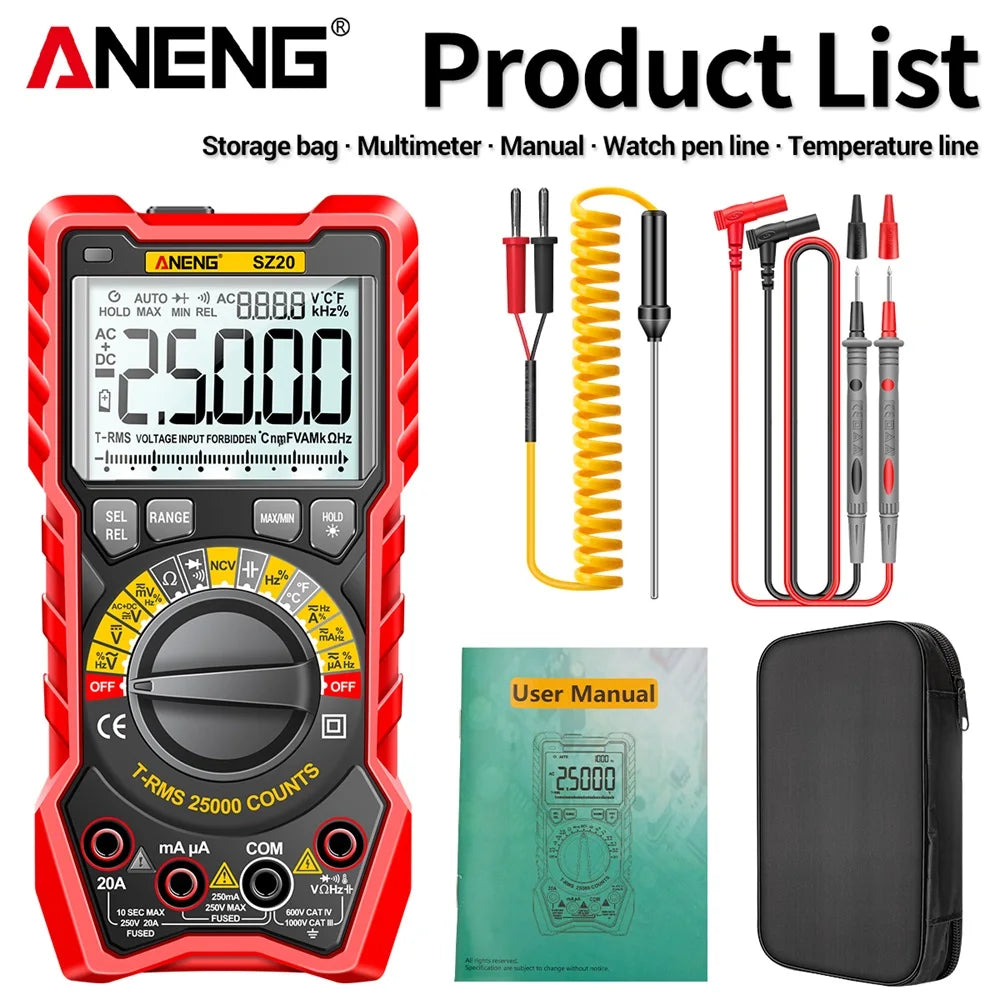

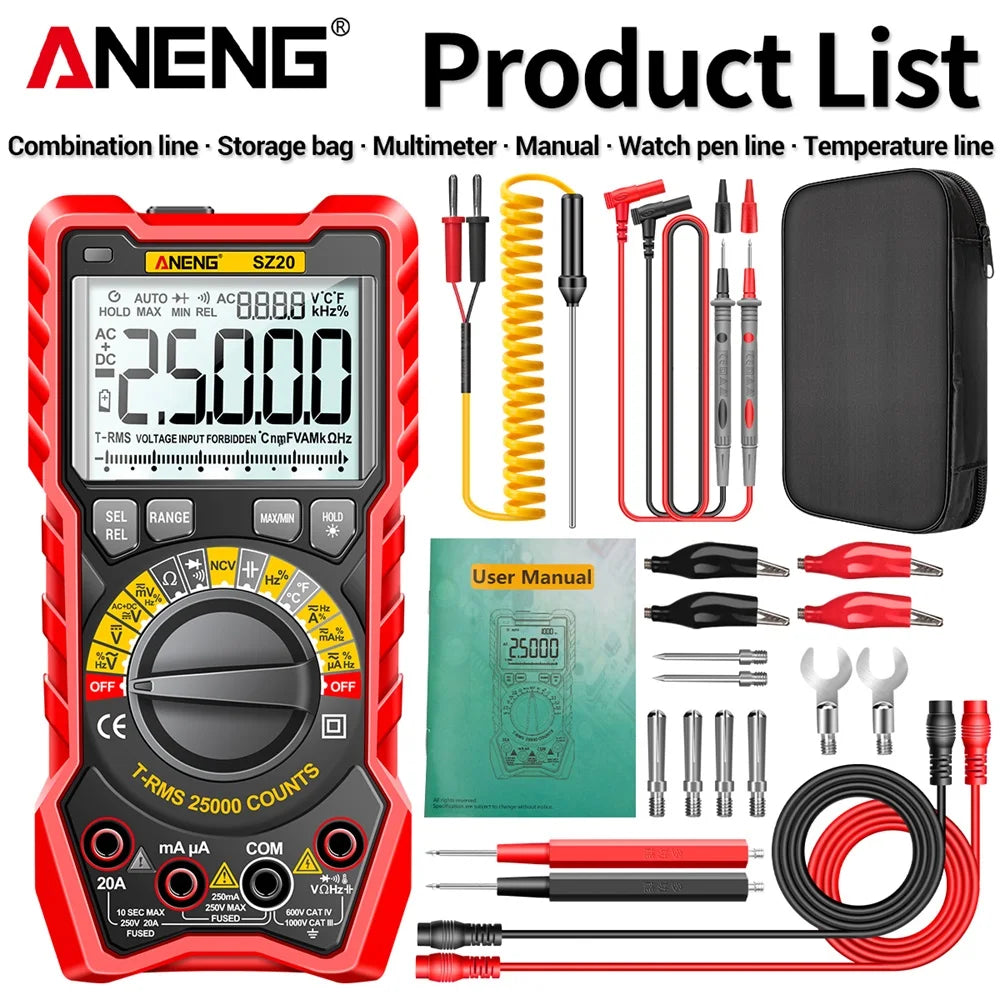

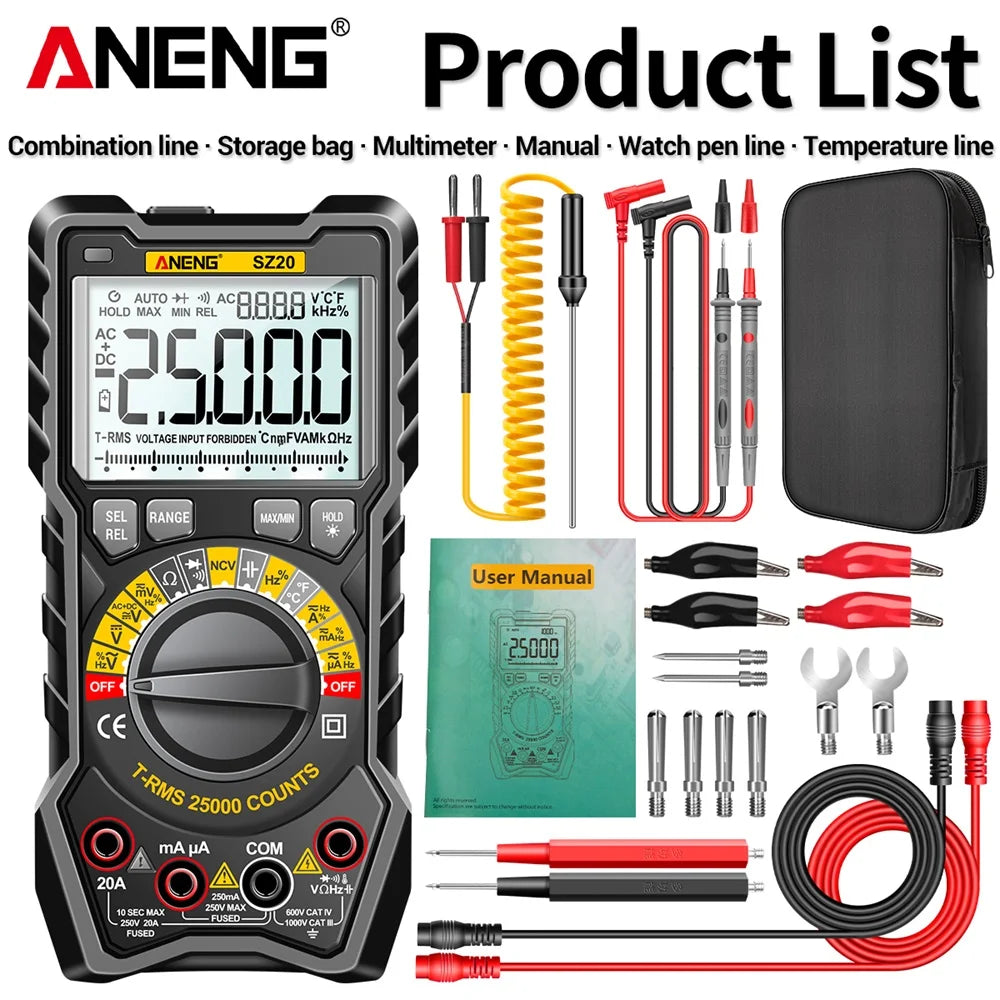

Package Include:

According to customer's choice
