SPECIFICATIONS
DIY Supplies: ELECTRICAL
AC Voltage: 0mV-750V
Display Type: Digital display
DC Voltage: 0mV-1000V
AC Current: 0uA-20A
Measuring Resistance Range: 0-250M Ohm
Certification: CE
DC Current: 0uA-20A
Measuring Capacitance Range: OnF-99.99mF
Operating Mode: Manual mode
Model Number: SZ20 Multimeter
Is Smart Device: No
Measuring Inductance Range: no
Dimensions: 180*90*50mm
Operating Temperature: 0 - 40 ℃
Choice: yes
ANENG SZ20 Handheld Professional Digital Multimeter Tester True RMS Auto Range 25000 Counts DC AC 1000V
Description:
This product is a battery-poewred, true-rms, auto-ranging digital multimeter with a 25000 counts LCD display and a backlight.
1. Easy to use. This product is a battery-driven automatic range digital multimeter with true RMS.
2. Digital display. Instrument for LCD display, backlight display, clear reading.
3. Strip lighting. The strip lights on both sides of the screen will change synchronously with the intensity of the electric field.
4. Multimeter. Voltage, current, resistance, on-off, diode, frequency, non-contact voltage detection can be used.
5. Automatic shutdown. The multimeter will shut down automatically after 15 minutes.
Specification:
|
Functional parameters Model: SZ20 |
|||
|
Function |
Range |
Resolution |
Accuracy |
|
DC voltage |
OmV-1000V |
0.001mV-0.1V |
±(0.2%+10) |
|
AC voltage |
OmV-750V |
0.001mV-0.1V |
±(0.3%+3) |
|
DC current |
OuA-20A |
0.01uA-0.001A |
±(0.5%+3) |
|
AC current |
OuA-20A |
0.01uA-0.001A |
±(0.8%+3) |
|
Duty cycle |
1%~99% |
0.1% |
±(0.1%+2) |
|
Resistance |
0 Ω -250M Ω |
0.01Ω-0.1MΩ |
±(5%+5) |
|
Capacitance |
0nF-99.99mF |
0.001nF-0.01mF |
±(5%+20) |
|
Frequency |
0Hz-10MHz |
0.01Hz-0.001MHz |
±(0.1%+2) |
|
Temperature℃ |
-20~1000°℃ |
1℃ |
±(3%+5) |
|
Temperature°F |
-4~1832°F |
1°F |
±(3%+5) |
|
Flashlight |
√ |
Diode |
√ |
|
Data retention |
√ |
On and off beep |
√ |
|
Screen backlight |
√ |
NCV detection |
√ |
|
Low battery prompt |
√ |
Silicone sheath |
√ |
|
Automatic shutdown |
√ |
Back support |
√ |
|
Maximum count |
25000 |
Size |
7.08*3.54*2.16inch |
|
Material |
ABS/Silicone |
Weight |
384g( Battery free) |
|
above parameters are for reference only, and the actual measurement of the specific equipment shall prevail |
|||
|
Please note: Batteries are not included in the shipment |
|||

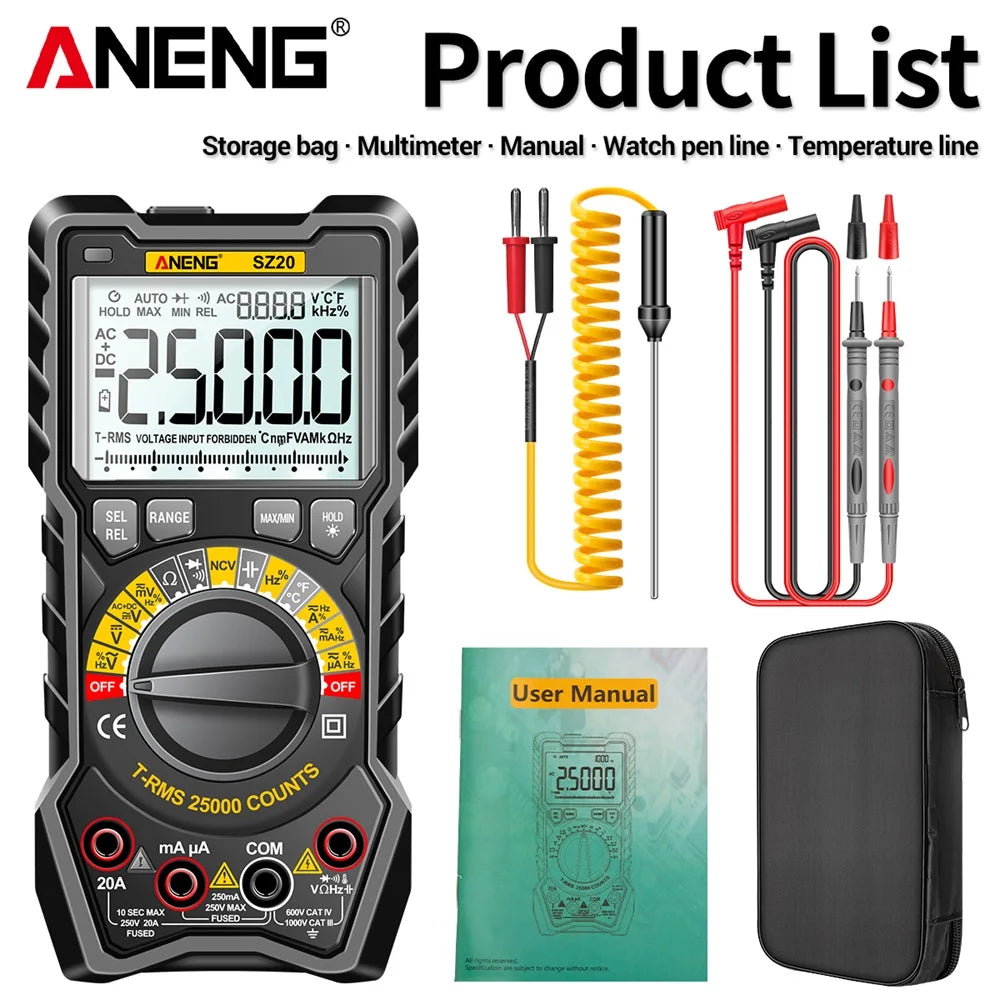

Package Include:
According to customer's choice
