SPECIFICATIONS
DIY Supplies: ELECTRICAL
AC Voltage: 620V
Display Type: Digital display
DC Voltage: 620V
AC Current: 610mA
Measuring Resistance Range: 60Mohm
Certification: CE
Certification: FCC
Certification: RoHS
DC Current: 610mA
Measuring Capacitance Range: 60mF
Operating Mode: Automatic/Manual
Model Number: BSIDE A1 A5 Digital Multimeter
Is Smart Device: No
Measuring Inductance Range: N/A
Dimensions: 13.9*5.3*3.2 cm
Operating Temperature: 0 - 40 ℃
Choice: yes

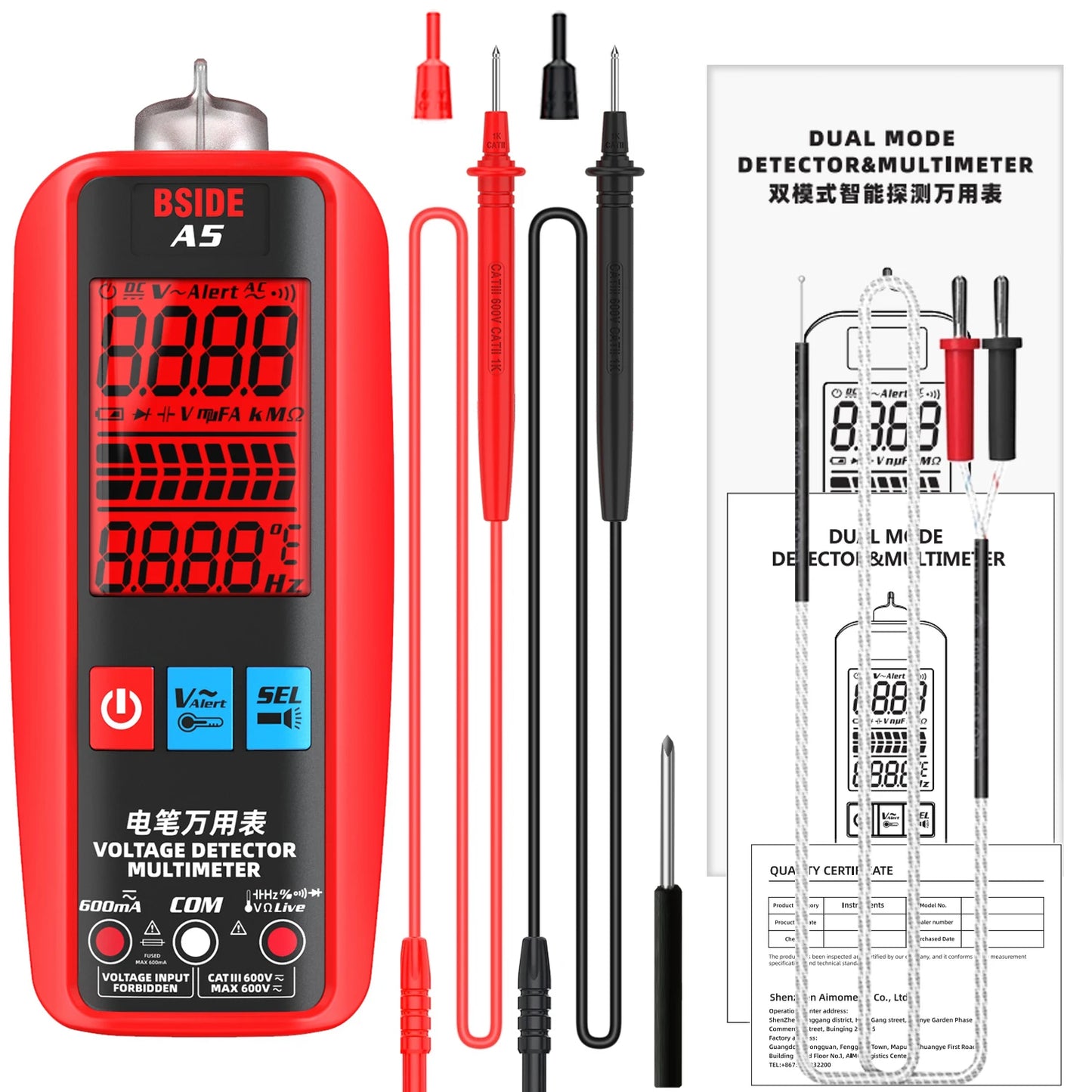

BSIDE A1/A5 Smart Digital Multimeter Professional Automatic Multitester VFC Hz Capacitor Electric Test Tool Ammeter Electrician Tester
Features:
Large LCD display
3 results display screen
Auto and manual mode
Triple-mode alarm
Capacitance, diode, VFC and temperature test
Live-wire check, continuity and V-alert test
AC/DC voltage and current, resistance, frequency test
Auto range, Auto power off, data hold, low battery indication
Specifications:
Display: 6000 counts.
True RMS: Yes.
Screen: 2.2 inch
DC Voltage: 0-620V(DC mode)/0.8-620V(Auto mode) 0.01V ±(0.8%+3)
AC Voltage:
0-620V(DC mode)/0.8-620V(Auto mode) 0.01V ±(1.2%+5); 10-620V(VFC Mode) 1V (4.0%+3)
DC Current: 1.0-610mA 0.1mA ±(1.5%+3)
AC Current: 1.0-610mA(40-1000Hz) 0.1mA ±(1.5%+3)
Resistance: 0Ω-6MΩ 0.1Ω ±(1.2%+3)；6MΩ-60MΩ 0.1Ω ±(2.0%+10)
Capacitance: 0.5µF-6mF 0.001µF ±(3.5%+8); 6mF-60.00mF 0.001µF ±(4.5%+10)
Frequency: 0-9999Hz(900mVrms-20Vrms) 0.001Hz ±(2.0%+10)
Temperature: 0-50℃(32-122℉) 1℃/1℉ ±(1.5%+2); 50-1000℃(122-1832℉) 1℃/1℉ ±(2.0%+3)
V-Alert(Non-contact Voltage Detection): Yes
Diode: Measures diodes within 3V
Continuity: If the resistance is less than 50Ω, the beeper sounds
Live Wire Check: Yes
Ambient Temperature: 0-50℃ ±2℃
Power: 1.5V (AAA) x 2
Size: 139.7 x53.7 x 32.8 mm
Weight: 92g
Package Includes:
1 x A1/A5 Voltage Detector Multimeter
. 1 x Test Leads.
1 x Screwdriver
. 1 x User Manual.
1 x Color box.
1 x K-type thermocouple(A5).
1 x C3104 High Quality Alligator Clip(Tool Kits).
2 x Special tip test probe(Tool Kits).
1 x High-quality EVA carrying case($2).
1 x BSIDE Z1 3-IN-1 Tester(A5 Tool Kits).
Product introduction:
This products belong to the latest generation of BSIDE brand Smart Digital multimeter Voltage detector Tester！
The Green/red color display design leaves an excellent user experience for buyers;
A5 products have VFC variable frequency voltage, Current and Temperature tests. The application scenarios are more extensive.
Overload protection, The easy-to use design is well recognized by buyers.
Exquisite appearance / reliable performance / complete functions, can meet the needs of different groups of people, and is very suitable as gift.
Equipped with a High-quality cloth bag made of EVA material, it is very portable.
New Red/Green Display.
Clarity And Smart.
Intelligent Current Test Gear.
No need to switch; Effective burn-proof.
VFC Variable Frequency Voltage Test.
Design Patent-Latest desig
3-IN-1 Multi-tester.
Professional Smart digital multimeter + Non-contact voltage detector + Flashlight.
A5-A Tool Kits :
Kit contains: A5 original product + 2*Special tip test probe + Carrying Case + C3104 Alligator Clip.
A5-B Tool Kits :
Kit contains: A5 original product + Z1 Smart Multimeter Voltage Detector + 2*Special tip test probe + Carrying Case + C3104 Alligator Clip.
