SPECIFICATIONS
DIY Supplies: ELECTRICAL
Display resolution: 320*240 Pixels
Digital Channels: 1
Model Number: FNIRSI-1C15
IS Battery Demountable: Yes
Display Size: 2.9 Inches & Under
Certification: CE
Real Time Sampling Rate: 500MSa/s
Max Waveform Capture Rate: 30,000wfm/s
Band Width: 100-349MHz
Battery capacity: 3000mAh
Time base range: 5ns-10s
Number of waveform measurement types: 14 types
1k Hz self-checking square wave: YES
Single trigger: YES
Waveform save: YES

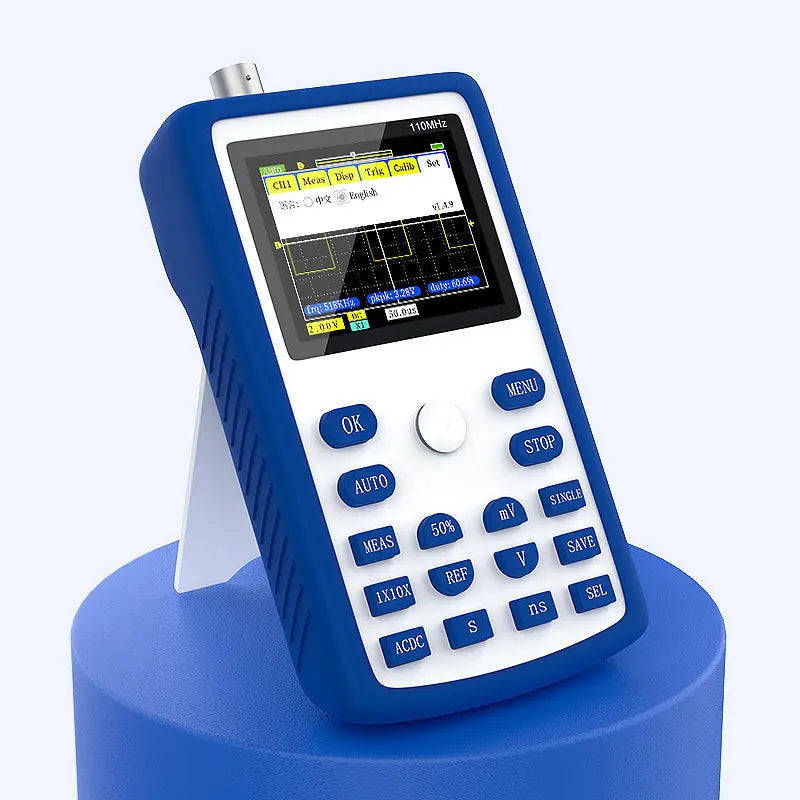

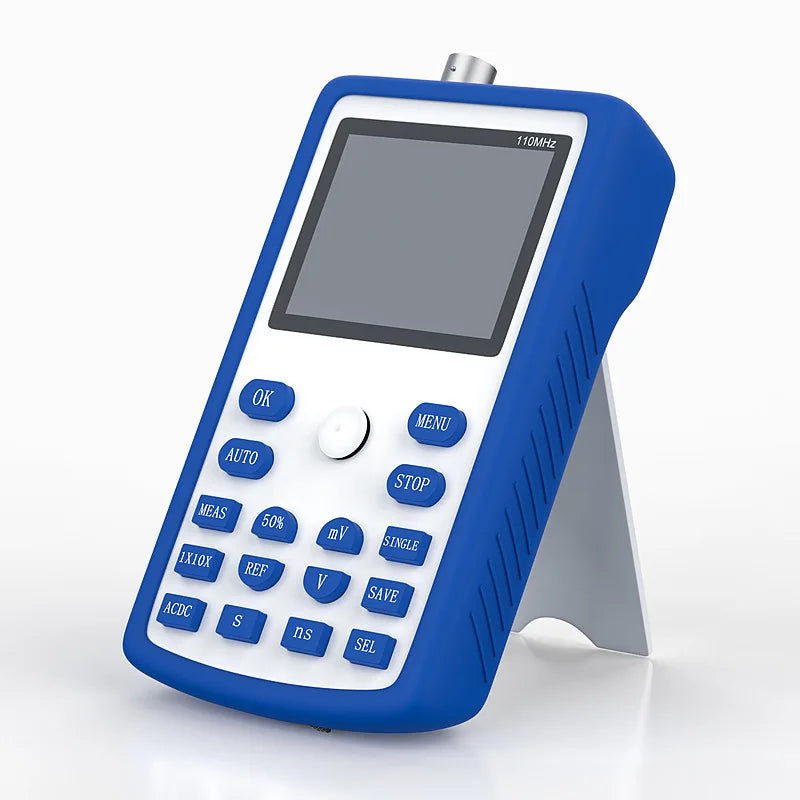

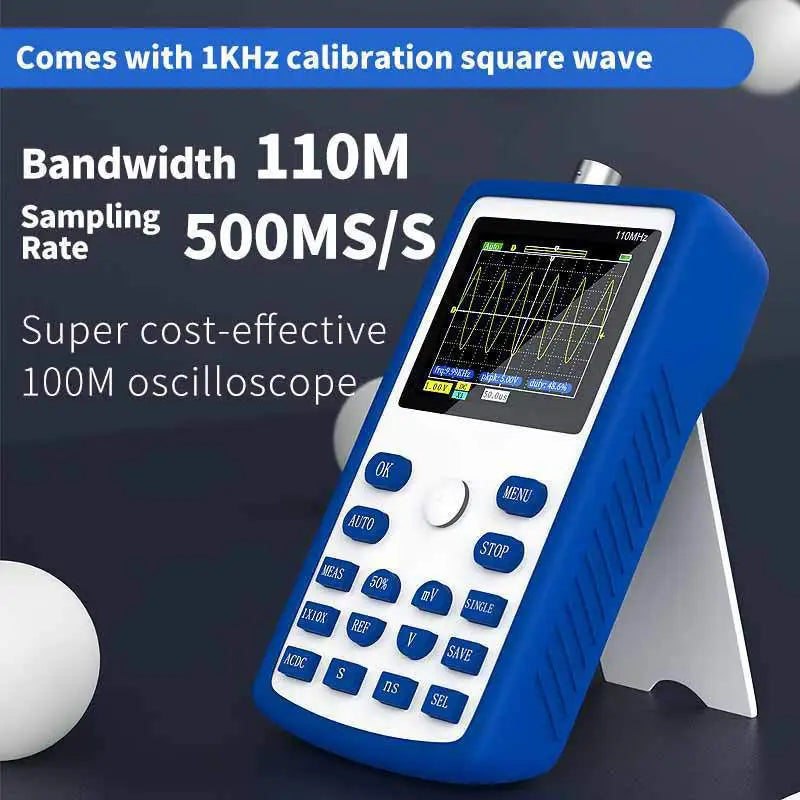

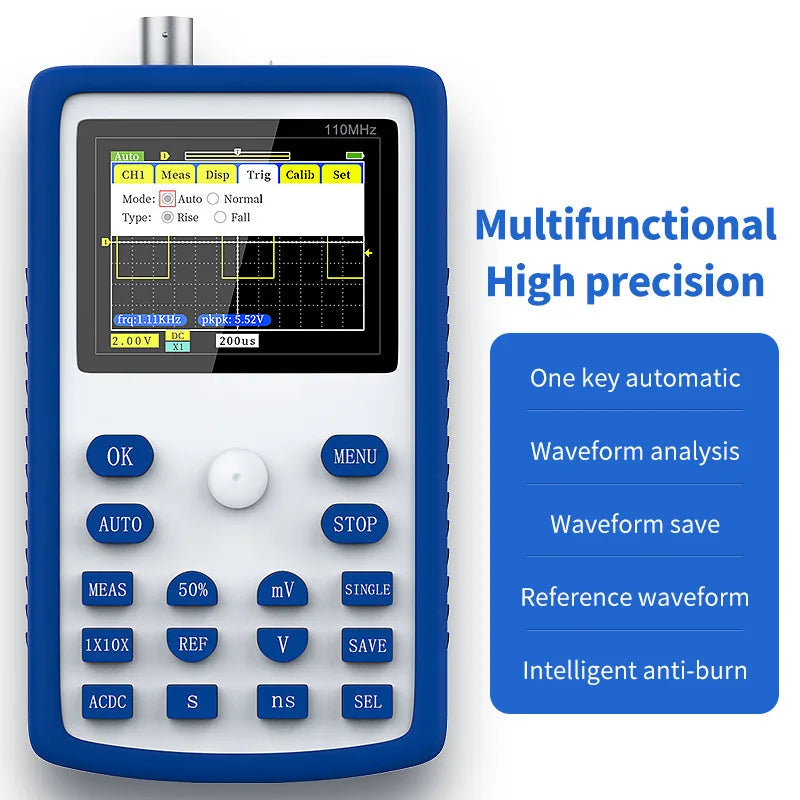

FNIRSI-1C15 is a fully functional, practical and cost-effective handheld oscilloscope newly launched by FNIRSI. The real-time sampling rate is 500M, and the analog bandwidth is 110MHz. In addition to all the functions of a conventional handheld oscilloscope, we also added a one-key quick auto function on this basis, so you can easily grasp the waveform like a desktop computer. We have added 1k Hz self-test square wave for FNIRSI-1C15, and the storage depth has been upgraded to 12kpts. With reference to the waveform, you can pause at any time to save the previous frame waveform to the screen, and you can compare it with the currently refreshed waveform. Afterglow and scroll modes make it easier to detect and record waveforms. Built-in 3000mAH rechargeable battery, it can work continuously for more than 10 hours after fully charged. The body is equipped with a high-quality silicone sleeve, which is non-slip and anti-drop. The joystick replaces the original arrow keys, making the operation simpler and more effective.
Model : FNIRSI-1C15
Number of channels : 1
Screen size : 2.4 inches
Screen Resolution : 320*240
Analog bandwidth : 110M
Sampling Rate : 500M
1k Hz self-checking square wave：Stand by
Rise Time : <3ns
Storage depth : 12 Kpts
Time base range : 5ns-10s
Vertical sensitivity : 20mv/div-100v/div
Trigger mode : Auto/Normal
Trigger type : Rising/Falling
Display mode : YT/scroll
Afterglow time : None/1s/∞
Charging method : 5V/800mA
Voltage measurement range : ± 40v (x1 file);± 400v (x10 file)
Channel coupling : AC-DC
One-button automatic : Stand by
Waveform measurement : 14 types
Measurement accuracy : ±2%
Reference waveform : Stand by
Waveform save : Stand by
Frequency accuracy : ±0.01%
1 * FNIRSI 1C15 oscilloscope
1 * P6100 High Voltage Probe
1 * Allgator Clip Probe
1 * Micro USB charging cable
1 * English User Manual
1 * Cloth bag
