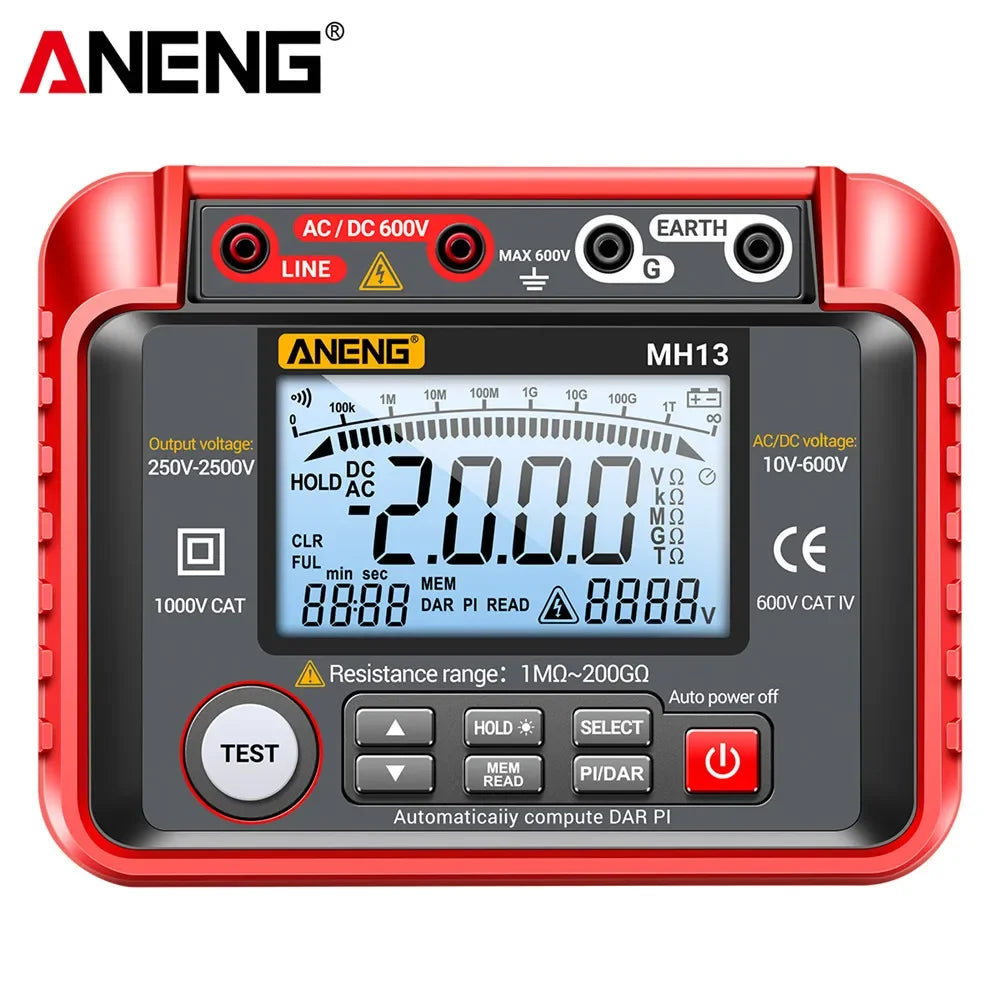

MH13 Digital Megohmmeter - Insulation Earth Resistance Tester

SPECIFICATIONS

DIY Supplies: ELECTRICAL

Model Number: Megohmmeter

Measuring Range: megometro digital

Dimensions: megometro digital

Testing Voltage: megometro digital

Operating Temperature: megometro digital

Accuracy Class: megometro digital

Display Type: Analogue and Digital

Certification: CE

Choice: yes





ANENG MH13 Ohm Tester Digital Multimeter Megometro Insulation Earth High Voltage Resistance Meter Tester Megohmmeter Tool

General:

Insulation resistance tester (or high voltage insulation meter) is a special instrument for measuring insulation resistance. It is an ideal test instrument for measuring insulation resistance of large transformers, transformers, generators, high-voltage motors, power capacitors, power cables, arresters, etc.

Technical Parameters:

The output voltage	Measuring range	Precision	Short circuit current
250V	1MΩ -10GΩ	±(5%+10d)	1.8mA
500V/1000V	2MΩ -20GΩ	±(5%+10d)
2000V/2500V	5MΩ -40GΩ	±(5%+10d)

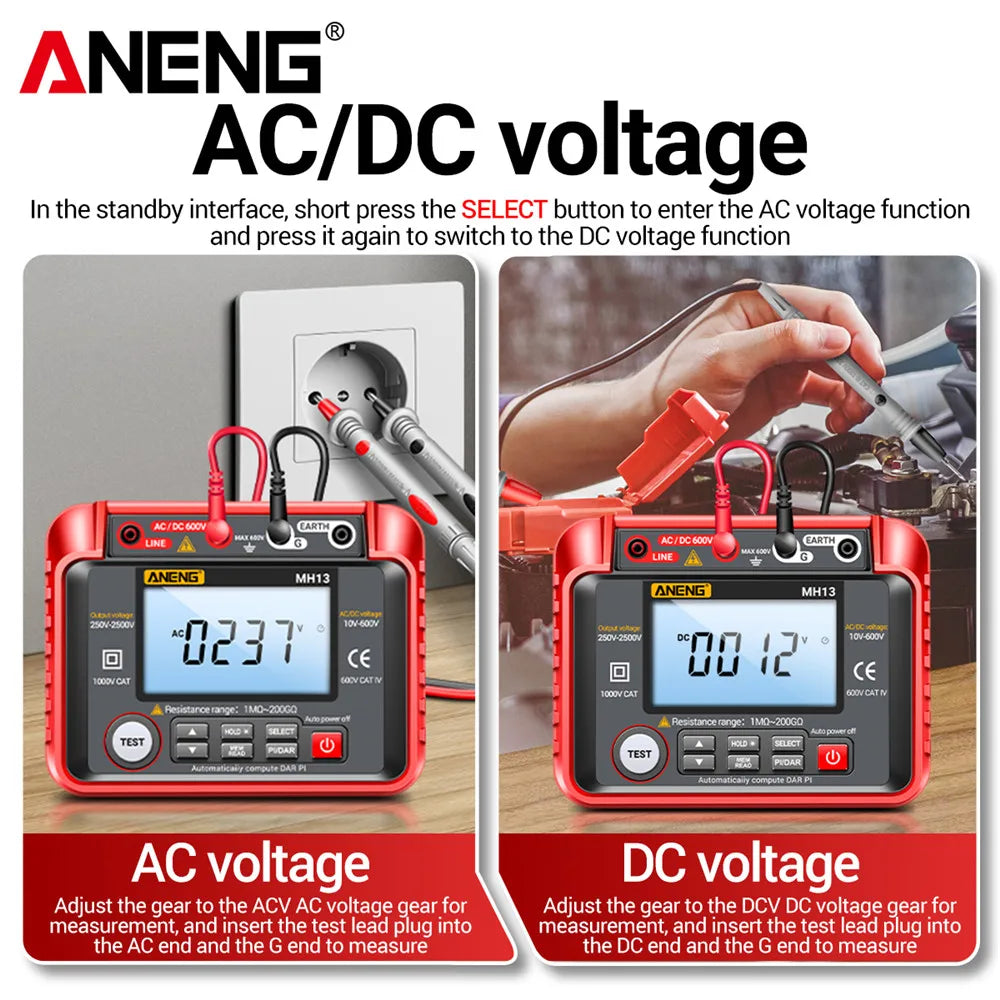

AC voltage	10-600V	±(1%+5d)
DC voltage	10-600V	±(0.8%+5d)
Resistance range	1MΩ -200GΩ	100 sets of data storage	√
Max Count	2000 Counts	HD backlit screen	√

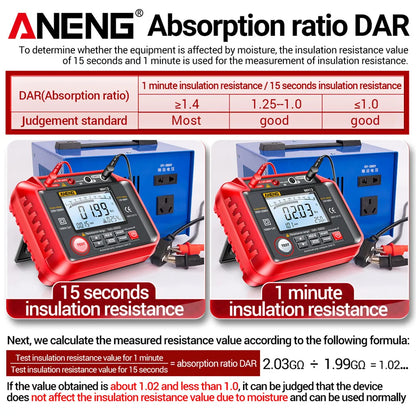

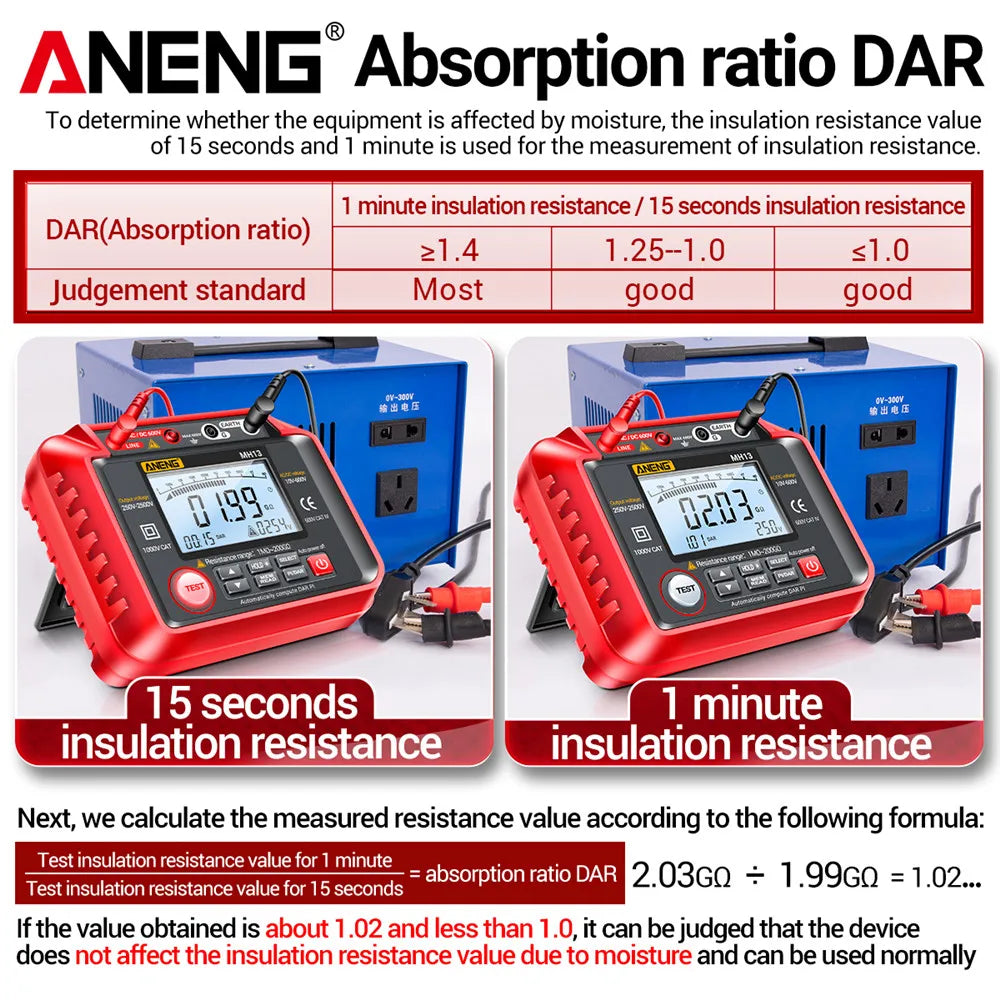

Use battery	AA5 battery *8 (not including)	Absorption ratio	√

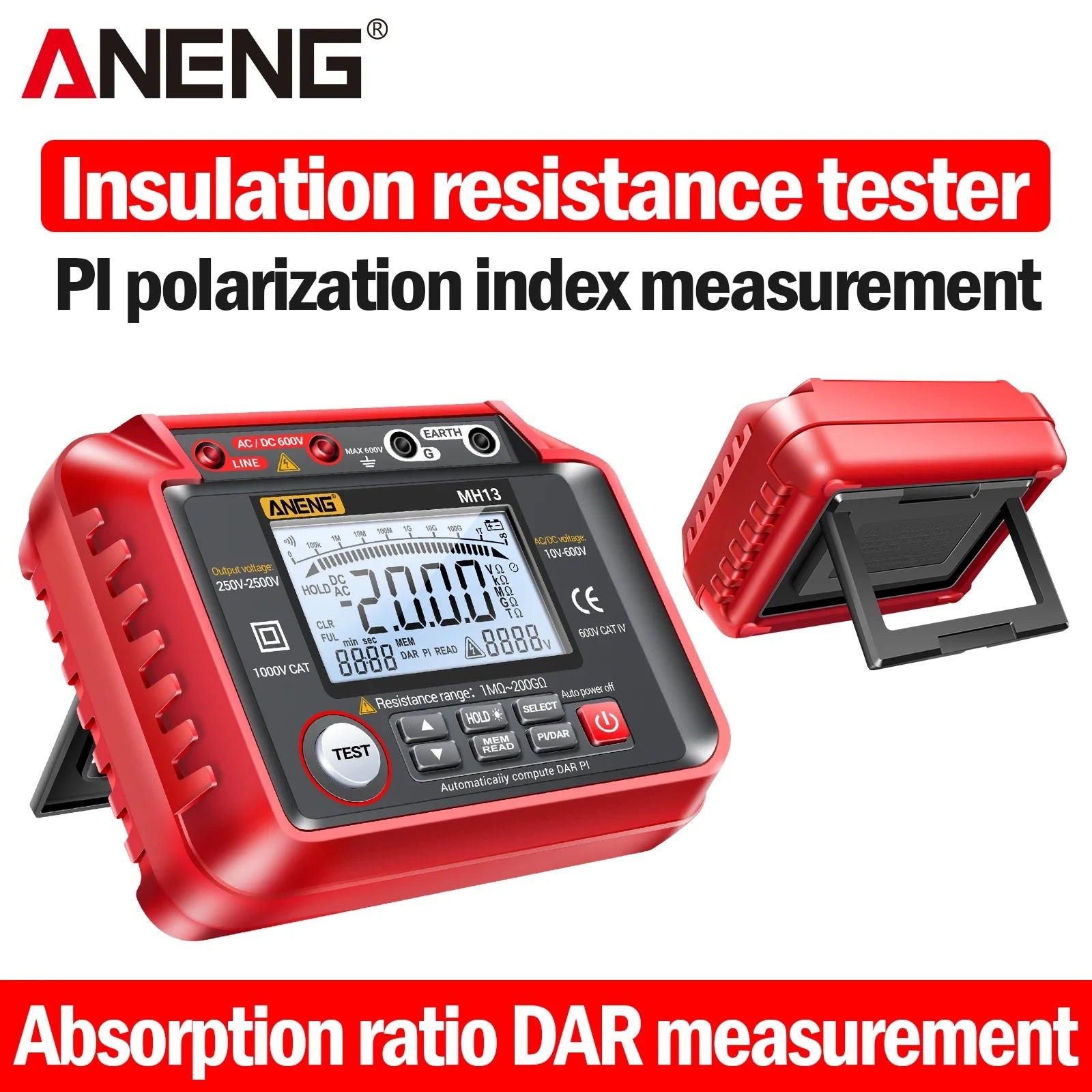

Material	Silica gel/ABS	Polarization Index	√
Weight	640g	Autoranging	√
Pen material	PVC/brass	Automatic discharge	√
Overall length of test leads	108cm	Test voltage display	√
Back support	√	High pressure indication	√
Low voltage indication	√	Measurement  time display	√

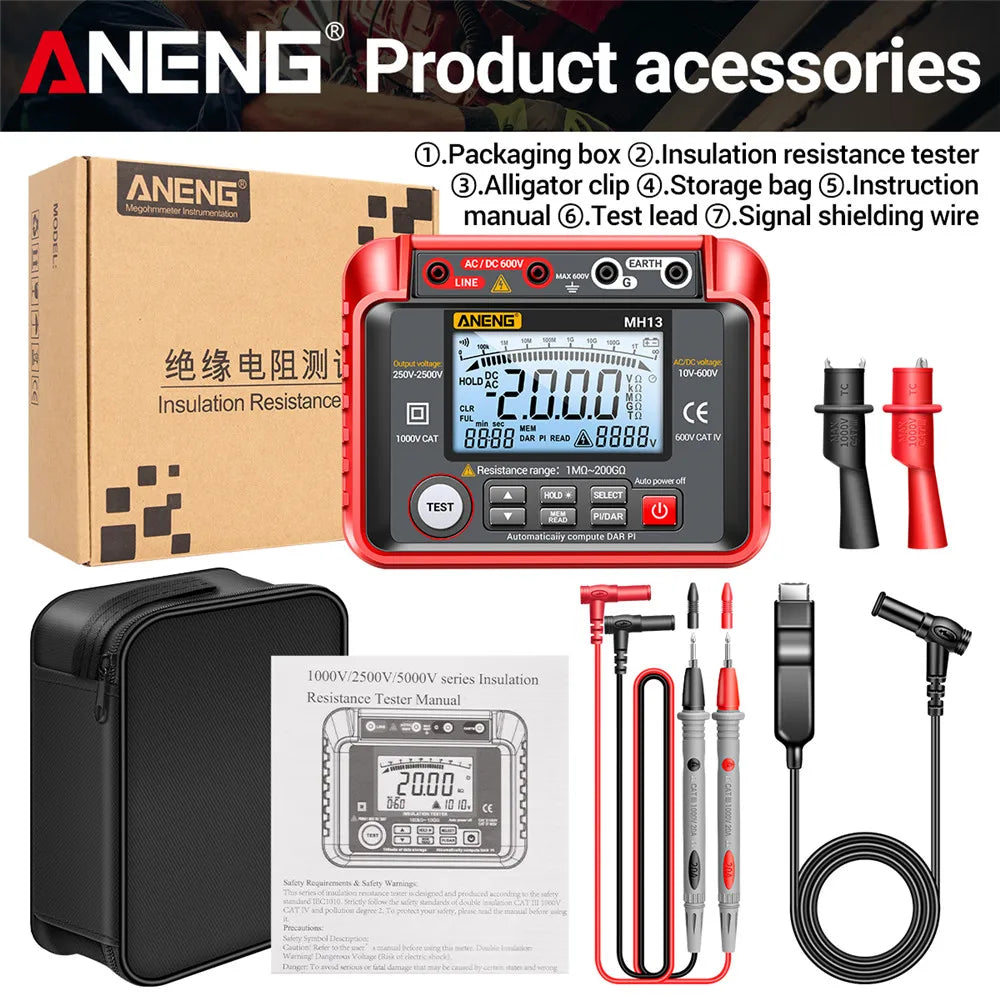

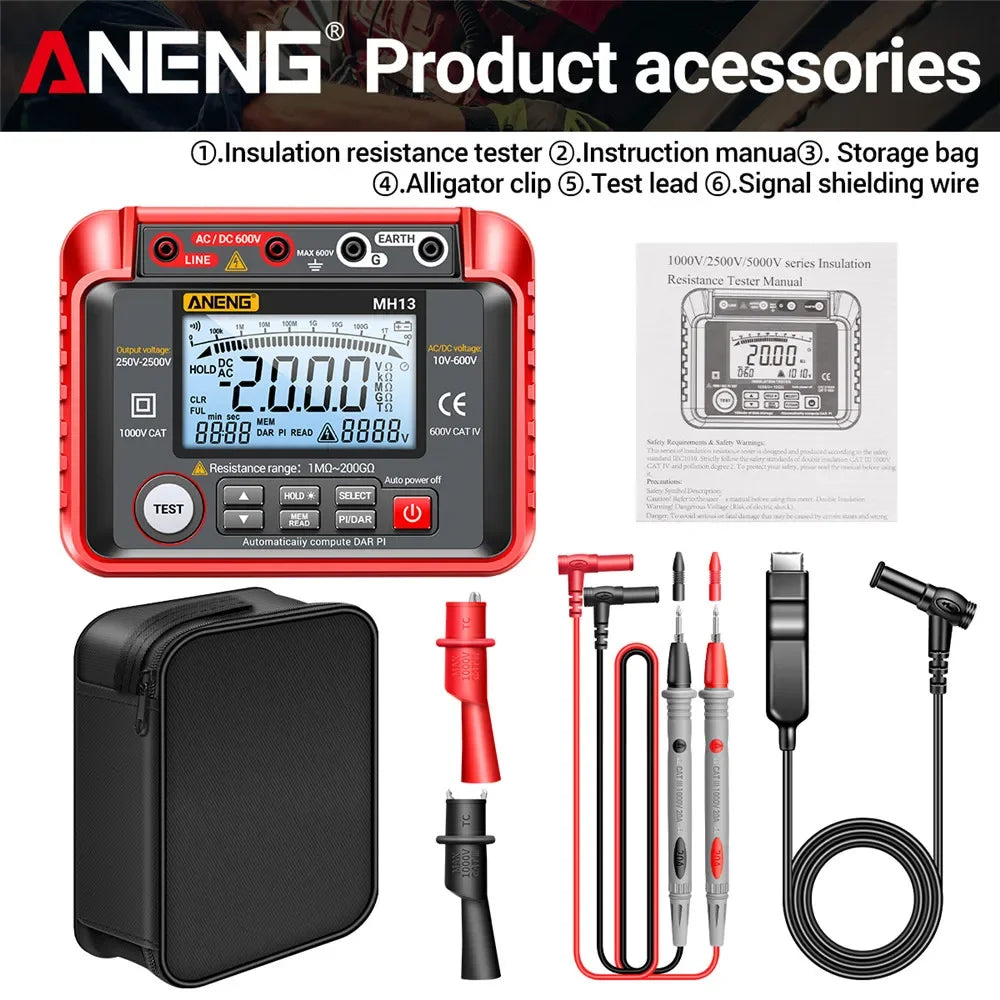

Package inclued:(not including batteries)

1* Packing box
1* Resistance megohmmeter
1* Aligator clip
1* Storage bag
1* Instruction Manual

1* Test lead

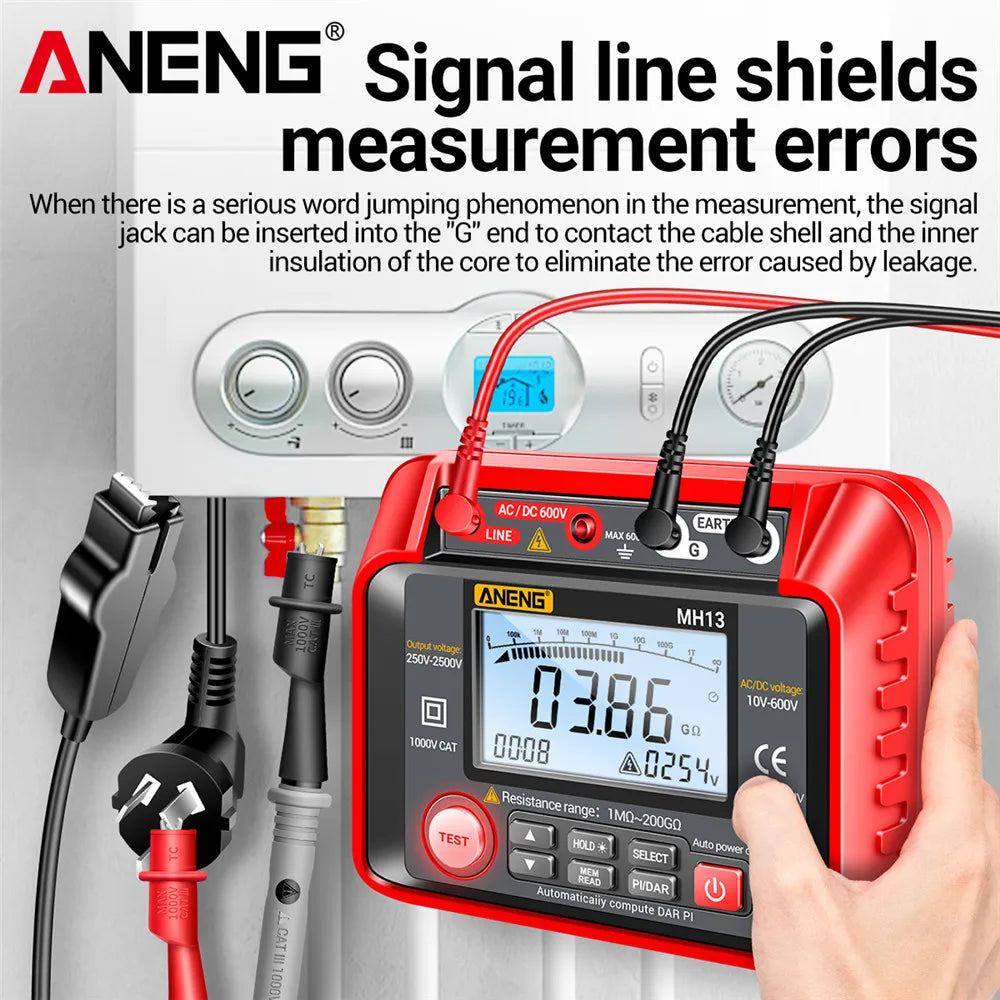

1* Signal Shielding Wire
