SPECIFICATIONS
DIY Supplies: ELECTRICAL
Measuring Current Range: 60A/ 600A/ 1000A
Display Type: Digital Only
Measuring Voltage Range: AC 0~750V / DC 0~1000V
Measuring Resistance Range: 0~60M ohm
Certification: none
Measuring Capacitance Range: 99.9mF
Model Number: HT208A / HT208D
Choice: yes

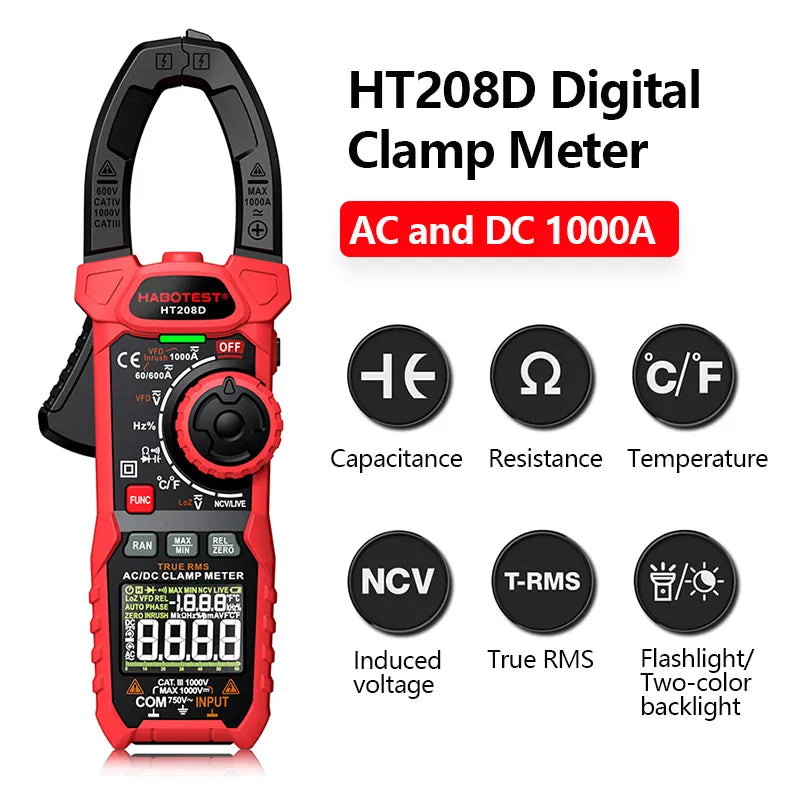

HT208 Digital Clamp Meter Multimeter 1000V 1000A AC DC True RMS Pinza Amperimetrica Capacitance Ohm Hz VFD Digital Clamp Tester
Description:
This is a dual impedance true RMS digital multimeter integrating a variety of measurements like AC/DC voltage(Only for HT208D), AC/DC current, frequency, duty ratio, resistance, capacitance, temperature, diode, continuity, NCV, VFD, inrush current, etc.. And there are more functions like last data hold, flashlight, Max./Min./Relative value, Celsius/Fahrenheit degree, and zero key.
Features:

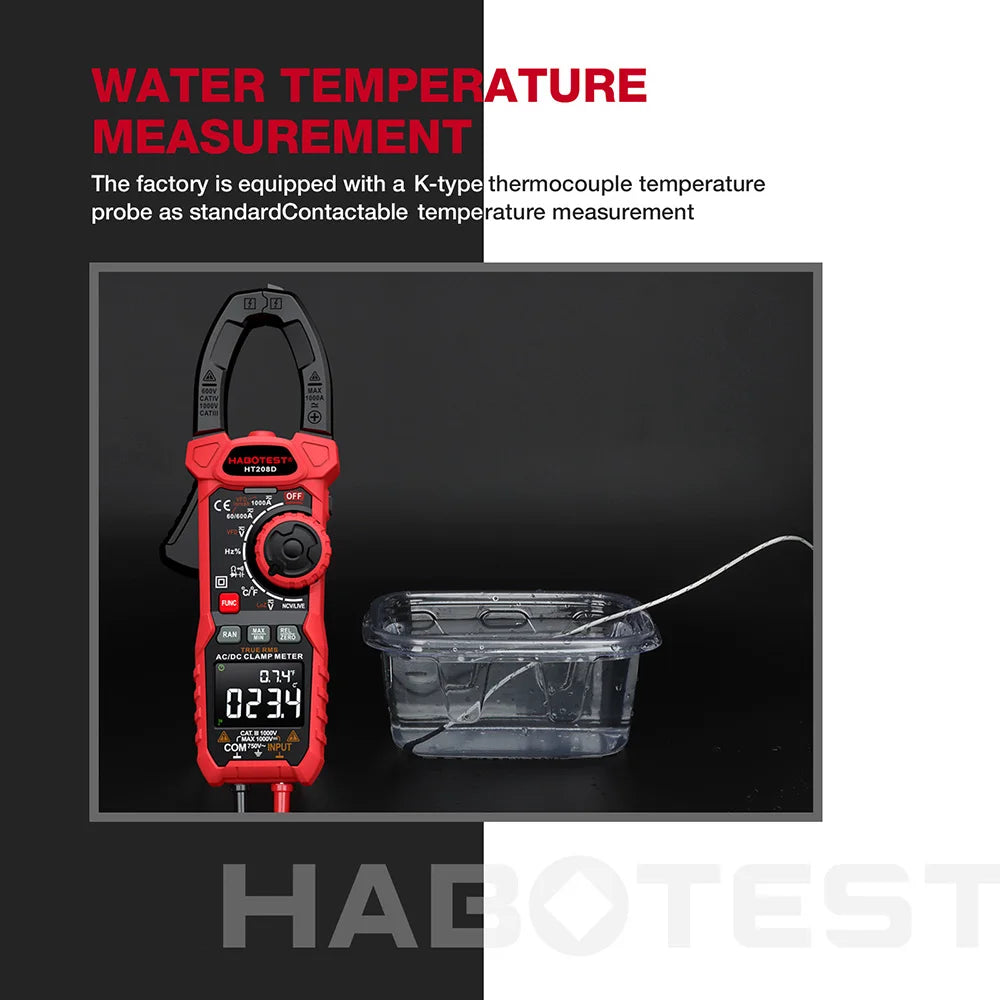

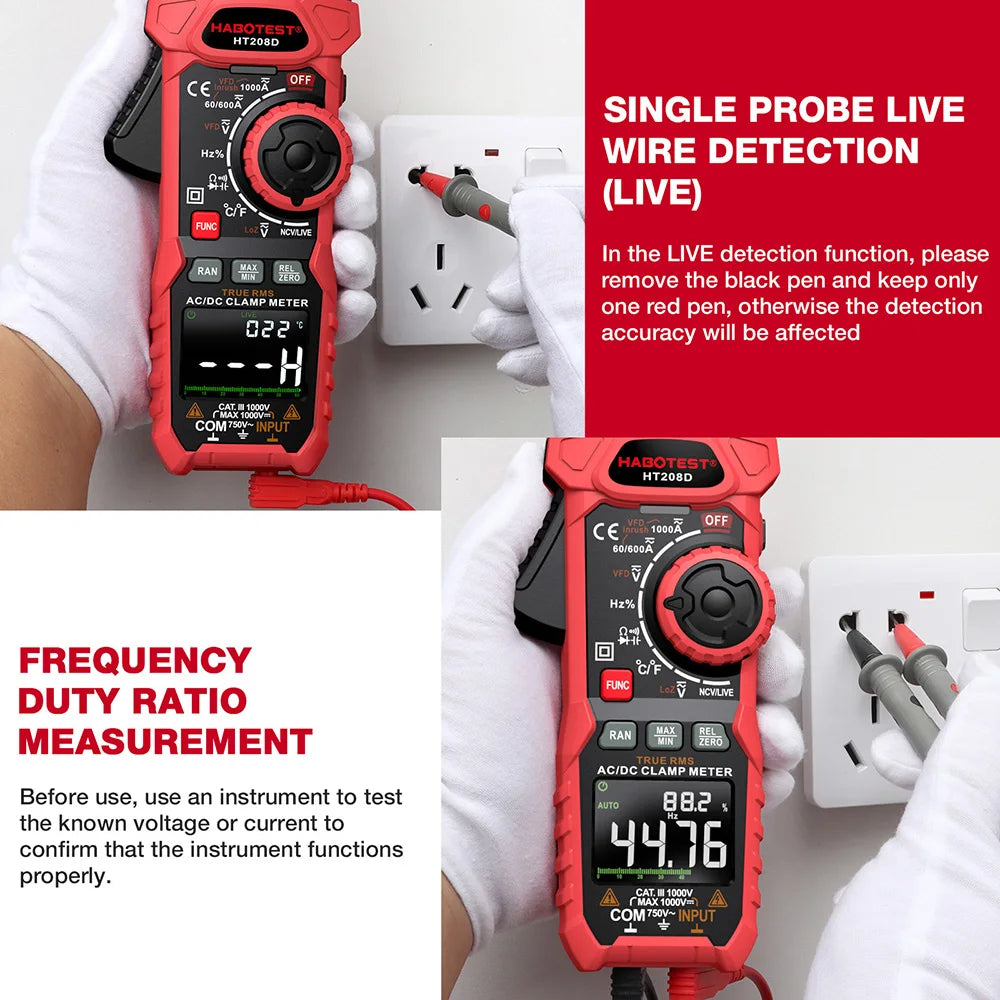

▲CLAMP MULTIMETER: Measures inrush current, VFD current/voltage, AC/DC current, AC/DC voltage, frequency, duty ratio, resistance, continuity, diode, capacitance, temperature, non-contact AC voltage (NCV) detection, and live detection.
▲WIDE OPENING JAW: Opening jaw capacity is 40mm, wide enough to measure without disturbing the circuit.

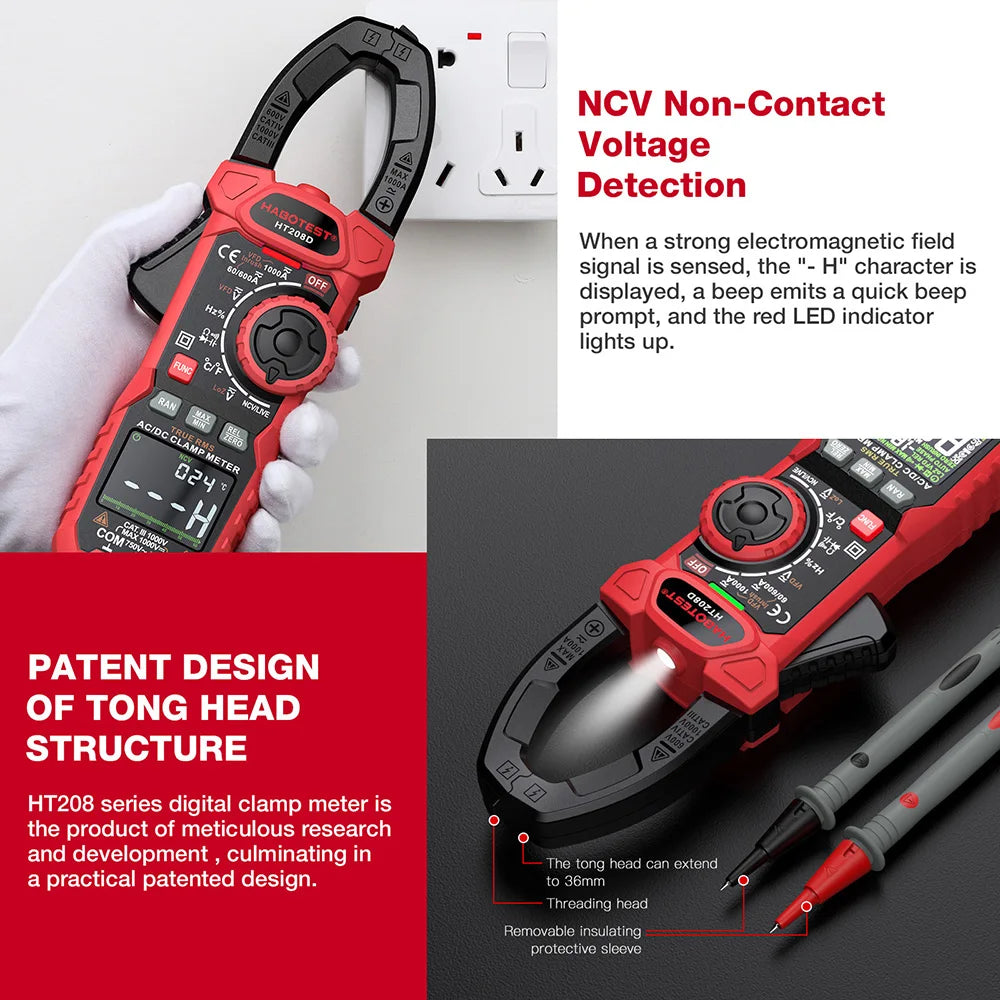

▲LOUD BEEP: NCV sensor send out audible and visual alarm once received electromagnetic signal.
▲MORE FUNCTIONS: Features data hold, flashlight, low battery display, Celsius/Fahrenheit degree, Max./Min./Relative value, and Zero(reset) key.
▲SAFE TO USE: Designed and conforms to IEC61010-1, CAT III 1000V, safe and reliable.
AUTO-OFF: Auto power off within 15 minutes if there is no operation, helps conserve the battery.
▲MULTI TESTER: Comes with 2 test leads and a thermocouple to be used as a multitester.

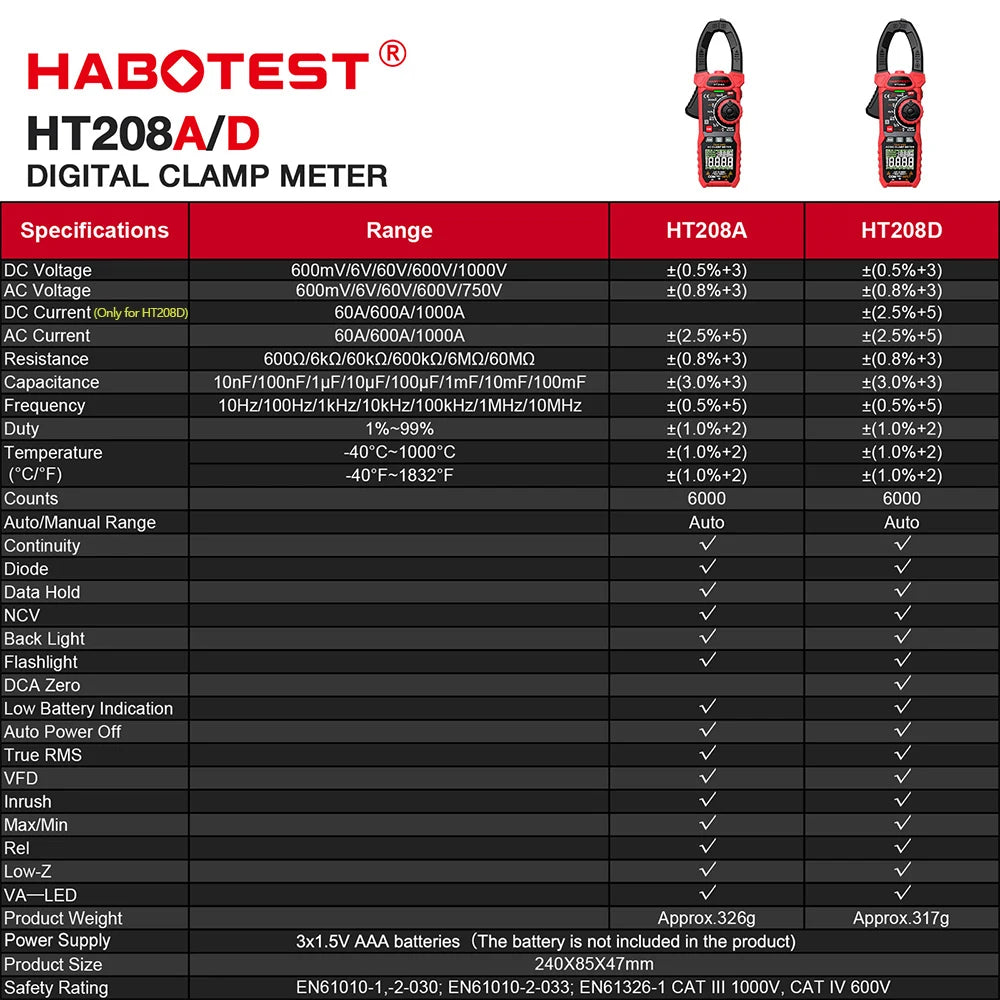

Specification:
Material: ABS
Color: Black and Red
Battery: 2pcs, 1.5V, AAA alkaline battery (batteries not included)

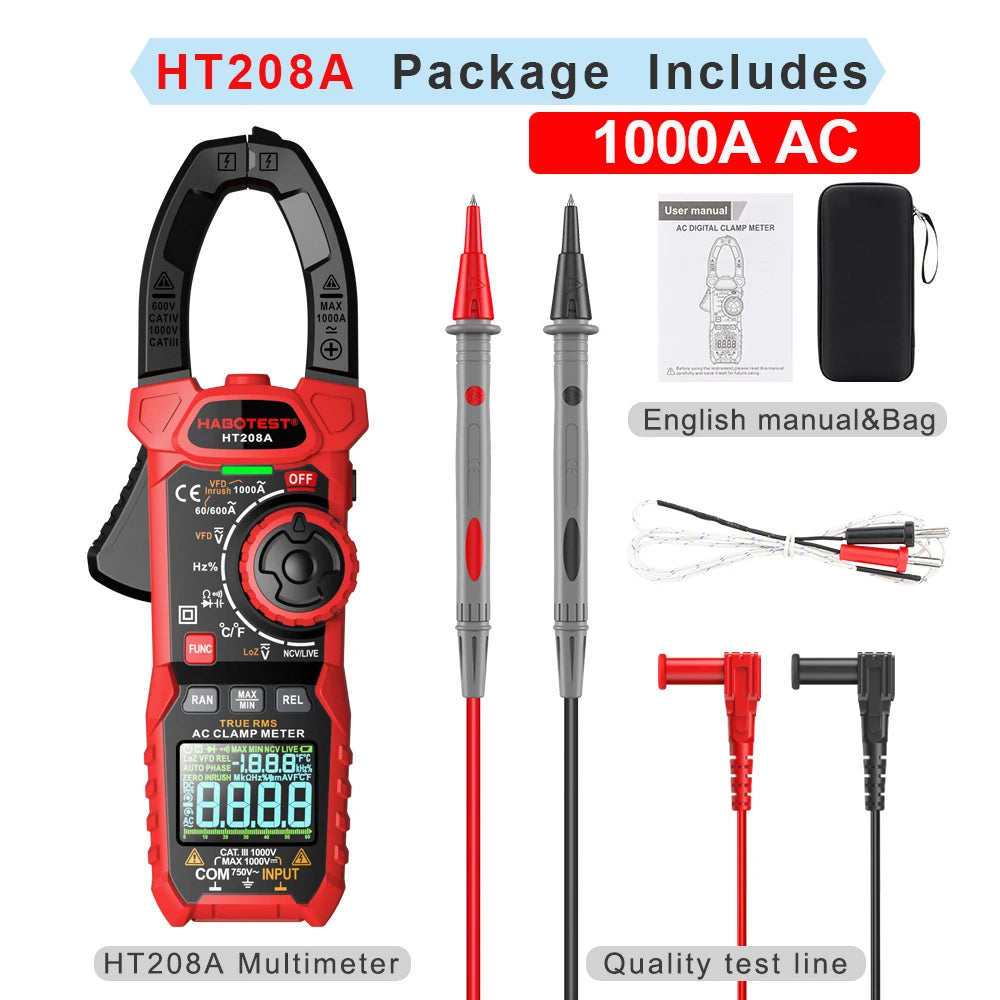

Packing List:
1 * Digital Clamp Meter
1 * Thermocouple
2 * Test Lead
1 * User Manual(English)
