SPECIFICATIONS
DIY Supplies: ELECTRICAL
AC Voltage: 0V-700V
Display Type: Digital display
DC Voltage: 0V-1000V
AC Current: 0A-20A
Measuring Resistance Range: 0-200M Ohm
Certification: CE
DC Current: 0A-20A
Measuring Capacitance Range: 0nF-200F
Operating Mode: Handed
Model Number: DT9205A Multimeter
Is Smart Device: No
Measuring Inductance Range: -
Dimensions: 195 x 89.6 x 38.2mm
Operating Temperature: 0 - 40 ℃
Choice: yes
DT9205A hFE AC DC LCD Display Professional Electric Handheld Tester Meter Digital Multimeter Multimetro Ammeter Multitester
Specifications:
|
Brand |
ANENG |
Modle |
DT9205A |
|
Triode |
Yes |
Diode |
Yes |
|
Low battery indicator |
Yes |
Buzzer measurementt |
Yes |
|
Capacitance |
Yes |
Resistance |
Yes |
|
Automatic shut-down |
20 minutes later |
Bracket |
Yes |
|
Date retention |
Yes |
Transistor |
Yes |
|
Material |
ABS/Silicone |
Scrren |
LCD scrren |
|
Maximum count |
1999 |
Battery modle |
6F22 9V battery (Not included) |
|
Features |
Range |
Resolution |
Accuray |
|
AC voltage |
0V-700V |
0V-1V |
±(1.2+3) |
|
DC voltage |
0V-1000V |
0V-1V |
±(1.2+5) |
|
AC current |
0A-20A |
0uA-10mA |
±(3.0+7) |
|
DC current |
0A-20A |
0uA-10mA |
±(2.0+2) |
|
Resistance |
0Ω-200MΩ |
0Ω-100KΩ |
±(5.0+10) |
|
Capacitance |
0nF-200μF |
OpF-1μF |
±(4.0+5) |

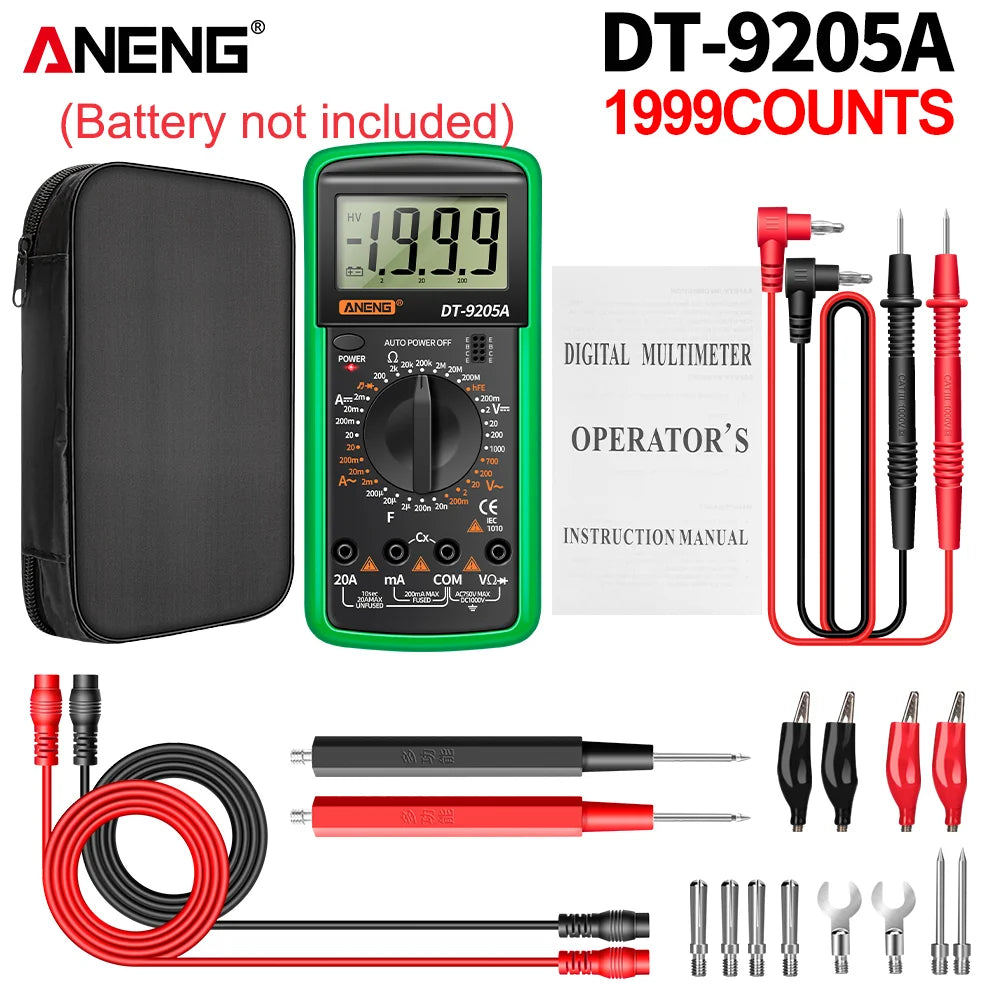

Package included:(Battery not included)
1 * DT9205A Multimeter&DT9205A PRO (Color&Modle Accoring to choice)
1 * Test Cable
'
