KOKANIA

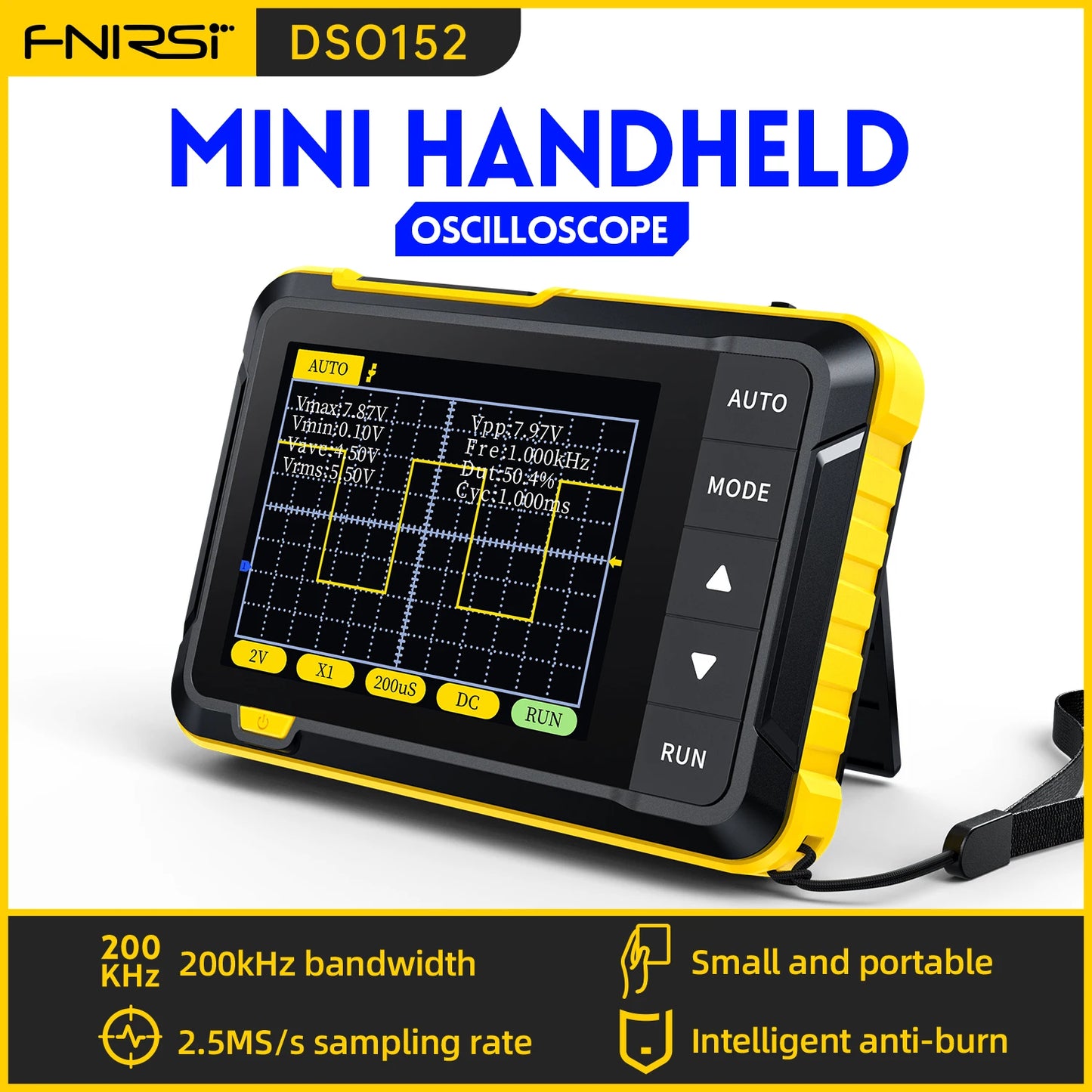

DSO152 Mini Handheld Digital Oscilloscope

DSO152 Mini Handheld Digital Oscilloscope

Regular price $52.80 USD
Regular price $99.00 USD Sale price $52.80 USD
Sale Sold out
Shipping calculated at checkout.
Color - NO.2(Option)
Ships From - CHINA
View full details

SPECIFICATIONS



FNIRSI Model: DSO152

DIY Supplies: ELECTRICAL

Display resolution: 320*240 Pixels

Digital Channels: 1

Model Number: DSO152

Display Size: None

Certification: CE

Real Time Sampling Rate: 2.5MSa/s

Band Width: 200KHz

Vertical sensitivity: 10mV/Div-20V/Div(Progress according to the 1-2-5 way)

Time base range: 10μs/Div-50s/Div(Progress according to the 1-2-5 way)

Voltage range: 1X 400VPP 10X 800VPP

Trigger method: Auto/Normal/Single

Coupling method: AC/DC

Display: 2.8 inches/PPI:320*240

USB charging: 5V/1A

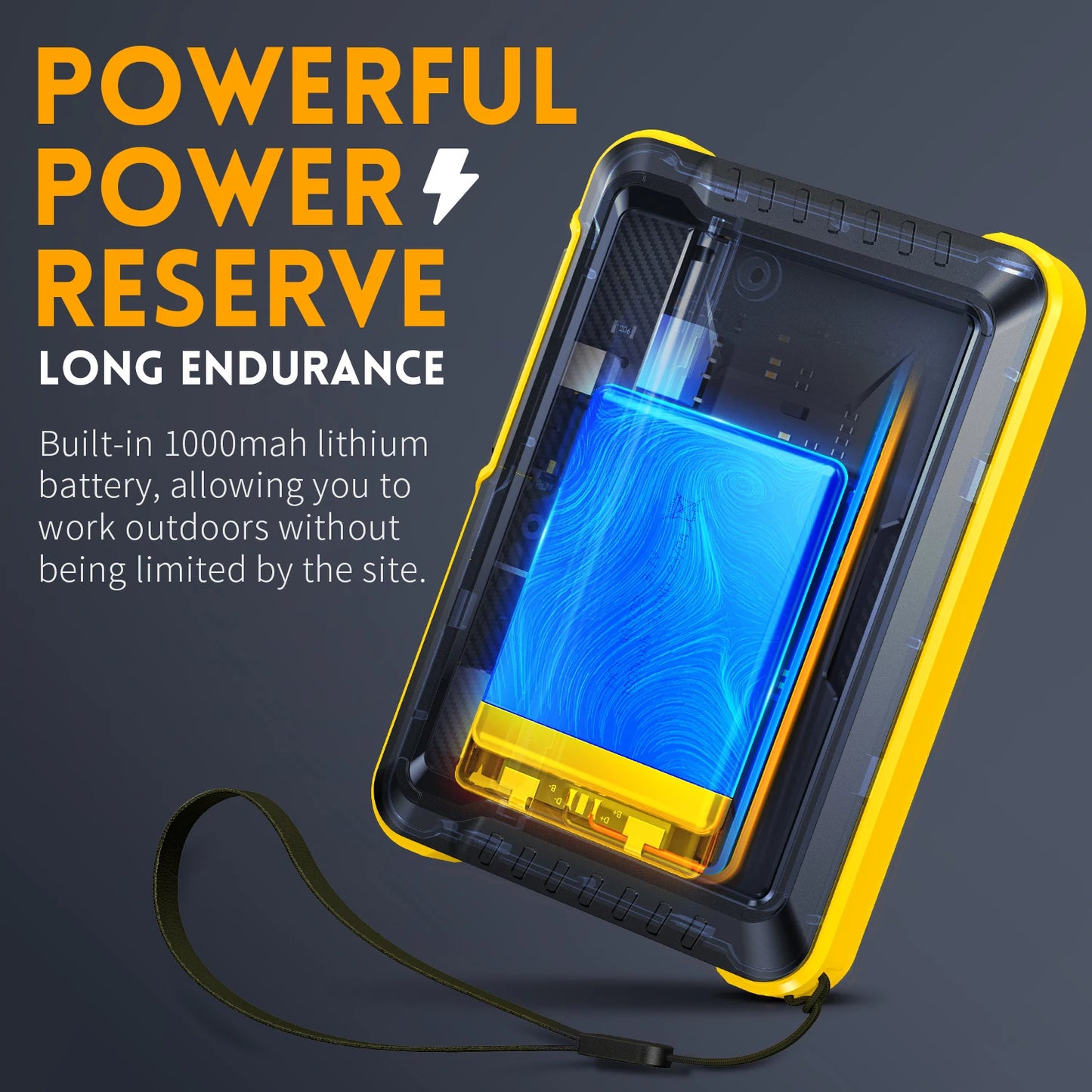

Lithium battery capacity: 1000mAh

Square wave calibration: Frequency: 1K Duty cycle: 50%

Size: 99mmx68.3mmx19.5mm

Weight: 100g



"DSO152" is a highly practical and cost-effective handheld oscilloscope launched by our company, which is aimed at the maintenance industry and the research education industry. The oscilloscope has a real-time sampling rate of 2.5MS/s, abandwidth of 200KHz, and complete trigger functions (single, normal, and automatic). It can be used freely for both periodic analog signals and non-periodic digital signals, and can measure voltages up to ±400V. Equipped with an efficient one-key AUTO, it can display the measured waveform without cumbersome adjustments. Equipped with a 2.8-inch 320*240 resolution high-definition LCD screen. Built-in 1000mAh high-quality lithium battery, can be used continuously for about 4 hours after fully charged.

Sampling rate:2.5MS/s Bandwidth:200K Vertical sensitivity:10mV/Div-20V/Div(Progress according to the 1-2-5 way) Time base range:10μs/Div-50s/Div(Progress according to the 1-2-5 way) Voltage range:X1:40V (Vpp:80V) X10: 400V (Vpp :800V) Trigger method:Auto/Normal/Single Coupling method:AC/DC Display:2.8 inches/PPI:320*240 USB charging:5V/1A Lithium battery capacity:1000mAh Square wave calibration:Frequency: 1K Duty cycle: 50% Size:99x68.3x19.5mm Weight:100g

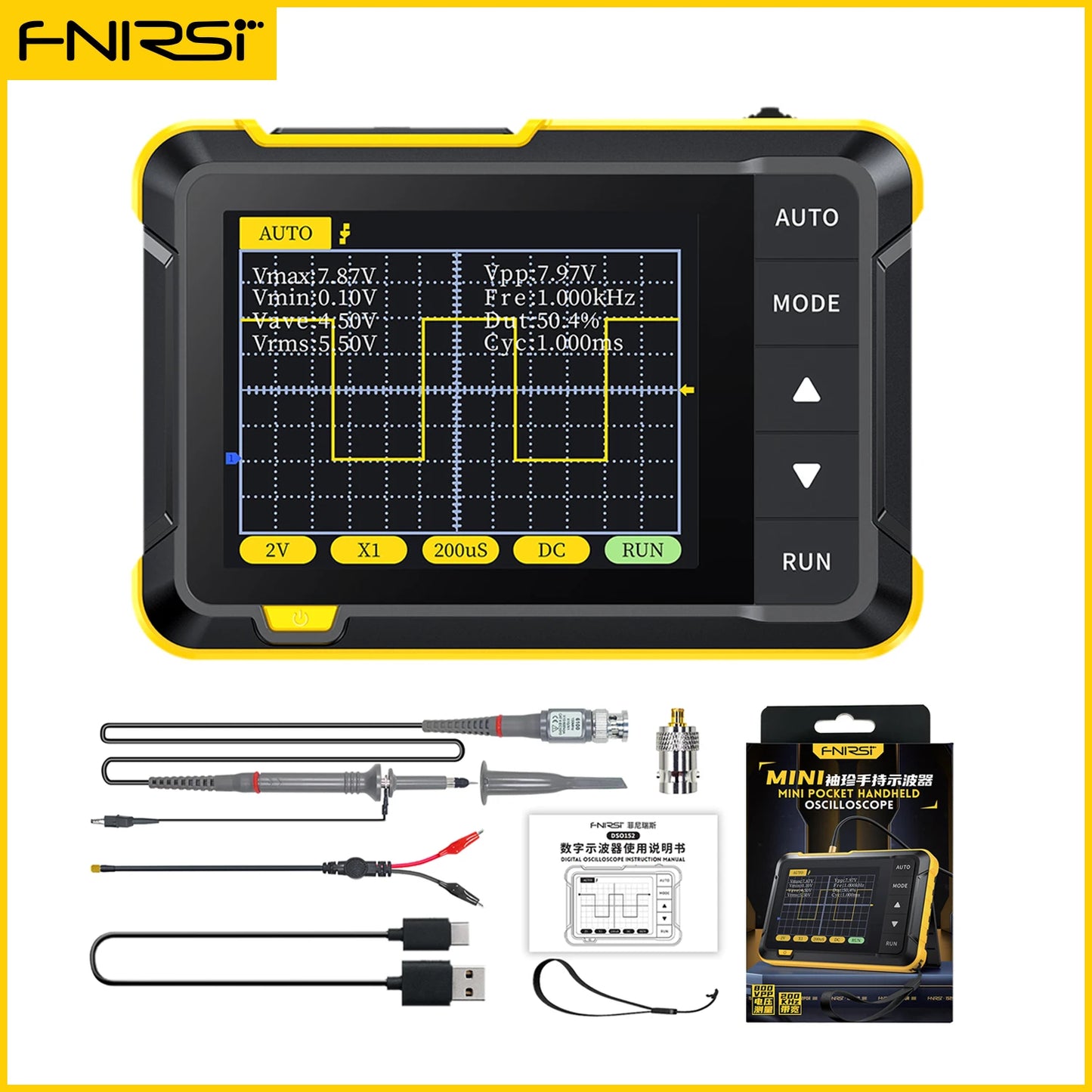

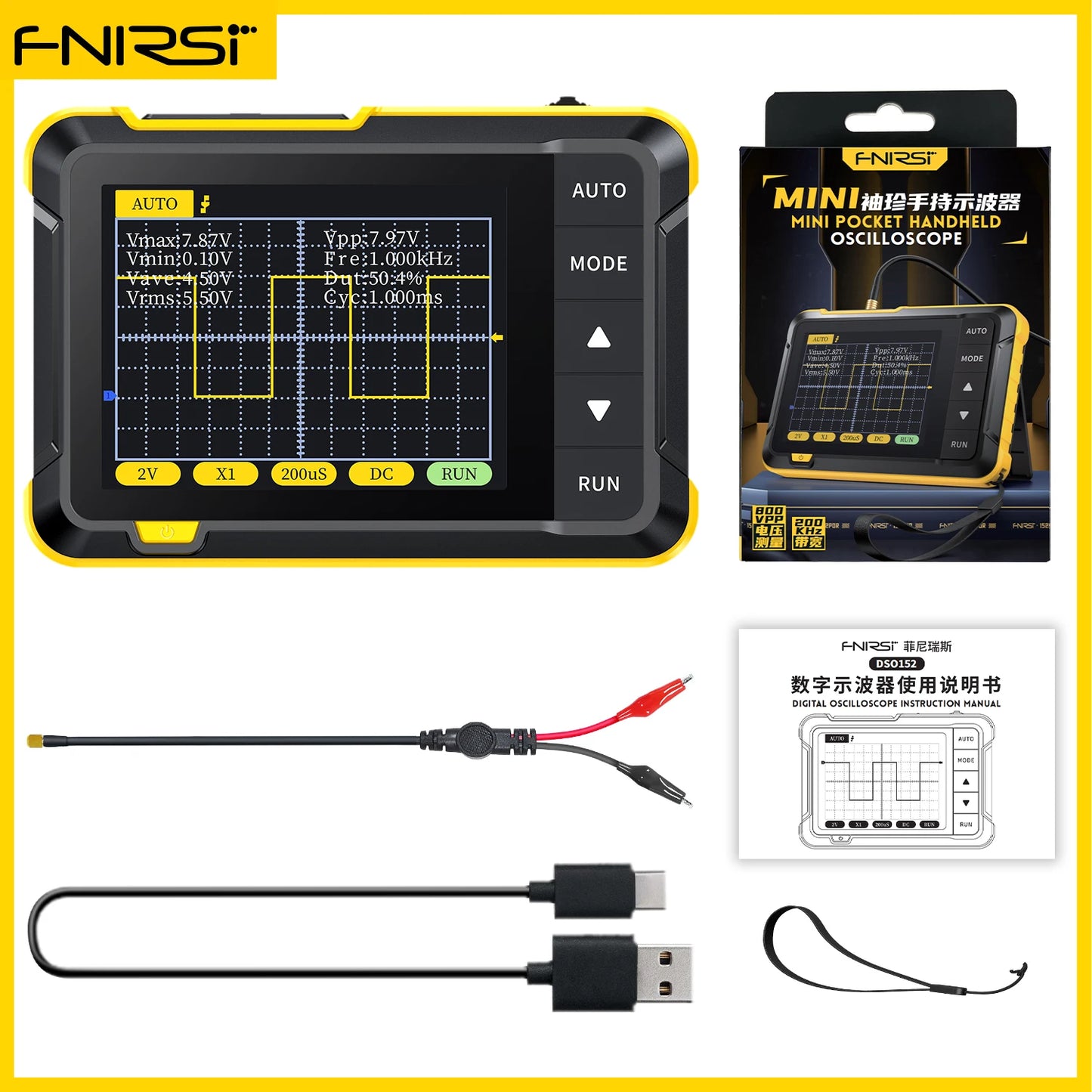

NO.1(Standard) Host device *1 Alligator clip probe *1 Charging cable *1 Lanyard *1 User Manual *1 Packaging color box *1 NO.2(Option) Host device *1 P6100 High Voltage Probe *1 Adapter *1 Alligator clip probe *1 Charging cable *1 Lanyard *1 User Manual *1 Packaging color box *1
