SPECIFICATIONS
AC Current: 200uA/2mA/20mA/200mA/fiberglass
DC Voltage: 200mV/2V/20V/200V/1000V
AC Voltage: 200mV/2V/20V/200V/750V

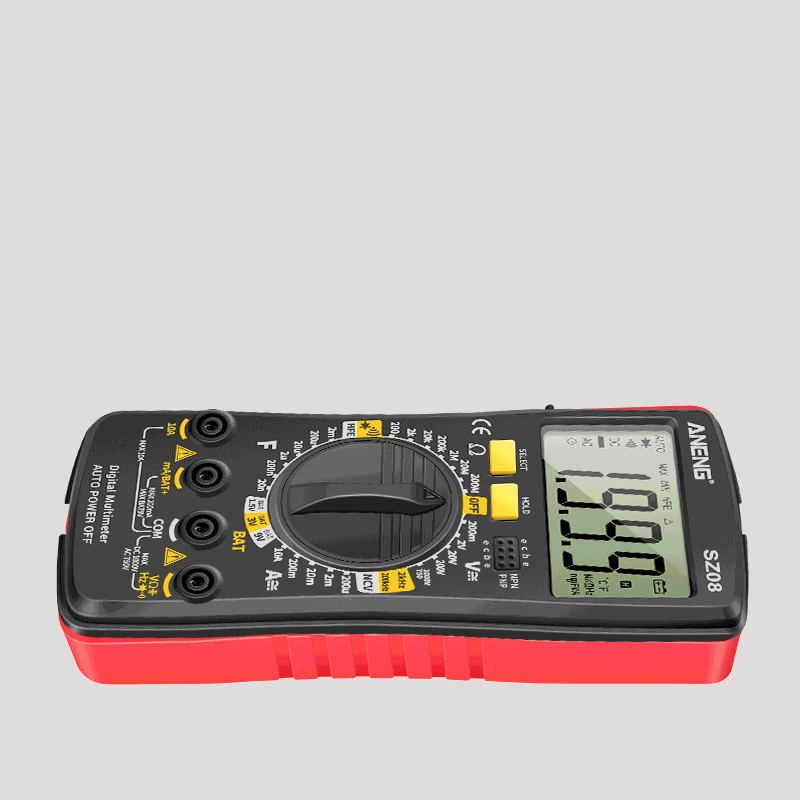

Model Number: ANENG SZ08
DC Current: 200uA/2mA/20mA/200mA/fiberglass
Display Type: Digital display
Measuring Resistance Range: 200/2K/20k/200k/2M/20m/200m
Operating Temperature: 0 - 40 ℃
Measuring Capacitance Range: 20nF/200nF/2UF/20UF/200UF/2mF
Is Smart Device: No
Operating Mode: Manual
Certification: CE
DIY Supplies: ELECTRICAL
Choice: yes
• Ultra-thin Design :The ANENG SZ08 Multimeter boasts an ultra-thin design, making it easy to carry and handle. Its compact size makes it perfect for professionals on the go.
• Digital Display :Equipped with a digital display, this multimeter offers clear and concise readings, enhancing the accuracy of your measurements.
• Wide Operating Temperature Range :With a operating temperature range of 0 - 40 ℃, this multimeter is suitable for use in various environments, ensuring consistent performance.
• Professional Meter Car Voltmeter :As a professional meter car voltmeter, it provides accurate readings for your vehicle's electrical systems, ensuring optimal performance.
• Handhold Tenders :Designed for handhold tenders, this multimeter is easy to use and operate, making it a practical tool for professionals.
• Chinese Origin :Originating from Mainland China, this multimeter reflects the quality and craftsmanship of Chinese products, ensuring durability and longevity.
Specifications:
|
Brand Name |
ANENG |
Model Number |
SZ08 |
|
Display(LCD) |
1999Counts |
Ranging |
Auto/Manual |
|
Material |
ABS + TPE |
Car Power Off |
YES |
|
LowBatteryIndication |
YES |
DataHold |
YES |
|
Operating |
Tenperature |
0 to 40 ° C |
|
|
|
Hunidity |
75% |
|
|
Storage |
Tenperature |
-20 to 60 ° C |
|
|
|
Hunidity |
80% |
|
|
Funtion |
Range |
Accuracy |
|
DCvoltage |
2V/20V/200V |
±(1.0%+5) |
|
DCvoltage |
200mV/1000V |
±(1.5%+5) |
|
ACvoltage |
200mV/2V/20V/200V |
±(1.3%+8) |
|
ACvoltage |
750V |
±(1.5%+10) |
|
DCCurrent |
200uA/2mA |
±(1.5%+8) |
|
DCCurrent |
20mA/200mA |
±(1.5%+5) |
|
DCCurrent |
10A |
±(2.0%+10) |
|
ACCurrent |
200uA/2mA/20mA/200mA |
±(2.0%+5) |
|
ACCurrent |
10A |
±(2.5%+10) |
|
Resistance |
200Ω/2K Ω/20K Ω/200K Ω/2MΩ |
±(1.0%+5) |
|
Resistance |
20MΩ |
±(1.5%+10) |
|
Resistance |
200MΩ |
±(5%+10) |
|
Capacitor |
20nF/200nF/2uF/20uF |
±(4.0%+5) |
|
Capacitor |
200uF |
±(4.5%+5) |
|
Capacitor |
2mF |
±(5.0%+20) |
|
Frequency |
2kHz/200kH |
±(1.5%+82) |
|
Diode:YES |
Continuity:YES |
NCV :YES |
|
Power |
2*1.5V AAA batteries |
(Not Included) |
|
Sample Rate |
3 times per second |
Packaging content:
1 x Multimeter
1 x Test lead
1 x User Manual
1 x Storage bag (only SZ08 Pro)
1 x 16pc Test probe(only SZ08 Pro)
Note:
1. Do NOT exceed the maximum value indicated in the Specification;
2. Do NOT input voltage at the Current Mode, the Resistance Mode, the Diode Mode, the Continuity Mode, or the Temperature Mode;
3. Do NOT use the product when the batteries or the battery cover is not placed properly;
4. Turn off the product and remove the test leads from the test points before changing batteries or fuses.
5. Do not input voltage exceeds 36V DC or 25V AC when you are at the setting of measuring current.
