SPECIFICATIONS
- Hign-concerned Chemical: None
- Guiding Line: Yes
- Alarm Type: Vehicle Backup Cameras
- Alarm Type: ACCESSORIES
- Alarm Type: Front
- Alarm Type: Front Side
- Alarm Type: Rear Side
- Lens Material: Plastic + Glass
- Shell Material: aluminium alloy
- Wire or Wireless: Wire
- Material Type: Stainless Steel
- Length of Video Cable: 6M
- Pixels: AHD 1080P or 720P Optional
- Night Vision: Top Starlight Night Vision
- Waterproof: Support
- Power: DC 12V~24V
- White Balance: Auto
- 6m Video Cable: Pure Copper Cable
- Use: Reversing Backup Camera
- TV System: NTSC or PAL Optional, Support for Customization
- Camera installation angle adjustment: Support
- Color: Black / White / Silver
Tips--About AHD1080P Style
Please check whether the Android unit supports AHD1080P camera!
If AHD1080P cannot be selected, AHD1080P cameras are not supported!
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P
Cameras with CVBS video signal is universal for all monitors, but AHD will only work with AHD monitor!
So, if monitor donot support AHD signal, please cut off the green/blue line.

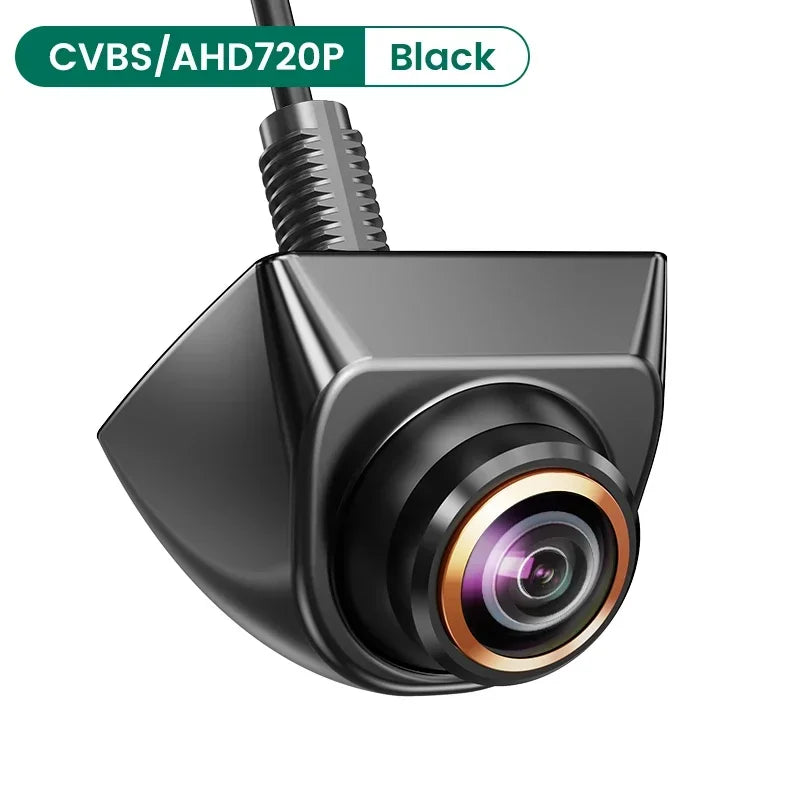

170° Wide Angle
Golden Fisheye Lens - Real 170°
AHD1080P Camera
Analog High Definition Technology
Top Starlight Night Vision
Starlight night vision function allows the camera to be used properly even at night
Suitable for all Cars
Support multiple installation methods:
Horizontal / Inverted / Side Mount
Available for rear / front / side view cameras
Please contact us for any installation questions
The dynamic option support intelligent dynamic trajectory
1.The AHD dynamic option only support AHD video output, donot support CVBS, so if your monitor only support CVBS, it will donot display the image.Please choose CVBS dynamic option that support all of car monitor.
2.Not need CANBUS or OBD interfaces, camera built-in reversing Tracks module, just connect the power.
3.Not support steering wheel control.
4.Adjust the track automatically according to the moving position and speed of car body and angle, help you make parking easier.
5.170°wide viewing angle.
Conversion Line Control
Brown: Mirror control
Green/Blue: Signal control
White: Parking line switch
Waterproof
The camera is filled with waterproof silicone, Effective chip protection,IP68-Rated for Use in Extreme Conditions
Pure Copper Cable
The video cable is made of high quality pure copper, which provides better video transmission quality than cables that can be attracted by magnets.
Integrated Step-down Module
Support DC12V
Low power consumption
Wiring diagram
